16 Linking, Segmentation, and Alignment
Indice
- 16.1 Links
- 16.2 Pointing Mechanisms
- 16.3 Blocks, Segments, and Anchors
- 16.4 Correspondence and Alignment
- 16.5 Synchronization
- 16.6 Identical Elements and Virtual Copies
- 16.7 Aggregation
- 16.8 Alternation
- 16.9 Stand-off Markup
- 16.10 Connecting Analytic and Textual Markup
- 16.11 Module for Linking, Segmentation, and Alignment
This chapter discusses a number of ways in which encoders may represent analyses of the structure of a text which are not necessarily linear or hierarchic. The module defined by this chapter provides for the following common requirements:
- to link disparate elements using the xml:id attribute (section 16.1 Links);
- to link disparate elements without using the xml:id attribute (sections 16.2.1 Pointing Elsewhere and 16.2.4 TEI XPointer Schemes);
- to segment text into elements convenient for the encoder and to mark arbitrary points within documents (section 16.3 Blocks, Segments, and Anchors);
- to represent correspondence or alignment among groups of text elements, both those with content and those which are empty (section 16.4 Correspondence and Alignment);56
- to synchronize elements of a text, that is to represent temporal correspondences and alignments among text elements (section 16.5 Synchronization) and also to align them with specific points in time (section 16.5.2 Placing Synchronous Events in Time);
- to specify that one text element is identical to or a copy of another (section 16.6 Identical Elements and Virtual Copies);
- to aggregate possibly noncontiguous elements (section 16.7 Aggregation);
- to specify that different elements are alternatives to one another and to express preferences among the alternatives (section 16.8 Alternation);
- to store markup separately from the data it describes (section 16.9 Stand-off Markup);
- to associate segments of a text with interpretations or analyses of their significance (section 16.10 Connecting Analytic and Textual Markup).
These facilities all use the same set of techniques based on the W3C XPointer framework (Grosso et al. (eds.) (2003)) This provides a variety of schemes; the most convenient of which, and that recommended by these Guidelines, makes use of the global xml:id attribute, as defined in section 1.3.1.1 Global Attributes, and introduced in the section of v. A Gentle Introduction to XML titled Identifiers and Indicators . When the linking module is included in a schema, the attribute class att.global is extended to include eight additional attributes to support the various kinds of linking listed above. Each of these attributes is introduced in the appropriate section below. In addition, for many of the topics discussed, a choice of methods of encoding is offered, ranging from simple but less general ones, which use attribute values only, to more elaborate and more general ones, which use specialized elements.
TEI: Links¶16.1 Links
We say that one element points to others if the first has an attribute whose value is a reference to the others: such an element is called a pointer element, or simply a pointer. Among the pointers that have been introduced up to this point in these Guidelines are note, ref, and ptr. These elements all indicate an association between one place in the document (the location of the pointer itself) and one or more others (the elements whose identifiers are specified by the pointer's target attribute). The module described in this chapter introduces a variation on this basic kind of pointer, known as a link, which specifies both ‘ends’ of an association. In addition, we define a syntax for representing locations in a document by a variety of means not dependent on the use of xml:id attributes.
TEI: Pointers and Links¶16.1.1 Pointers and Links
In section 3.6 Simple Links and Cross-References we introduced the simplest pointer elements, ptr and ref. Here we introduce additionally the link element, which represents an association between two (or more) locations by specifying each location explicitly. Its own location is irrelevant to the intended linkage. All three elements use the attribute target, provided by the att.pointing class as a means of indicating the location or locations referenced or pointed to.
- att.pointing definisce un insieme di attributi usati da tutti gli elementi che puntano ad altri elementi tramite uno o più URI
target specifica la destinazione di un riferimento, fornendo uno o più riferimenti URI - link definisce tra elementi o porzioni di testo un'associazione o legame ipertestuale non meglio specificabile da altri elementi
The ptr element may be called a ‘pure pointer’, because its primary function is simply to point. A pointer sets up a connection between an element (which, in the case of a pure pointer, is simply a location in a document), and one or more others, known collectively as its target. The ptr and ref elements point, conceptually, at a single target, even if that target may be discontinuous in the document. The link element specifies at least two targets and represents an association between them, independent of its own location.
These three elements also share a common set of attributes, derived from the att.pointing and att.typed classes:
- att.pointing definisce un insieme di attributi usati da tutti gli elementi che puntano ad altri elementi tramite uno o più URI
evaluate indica il significato previsto quando la destinazione di un puntatore è essa stessa un puntatore - att.typed assegna degli attributi generici utilizzabili per qualsiasi classificazione e sottoclassificazione di elementi
type caratterizza l'elemento utilizzando una classificazione o tipologia funzionale subtype stabilisce, se necessario, una sottocategorizzazione dell'elemento
<ptr xml:id="sa-p2" target="#sa-p1"/>
As noted elsewhere, the target attribute may take as value one or more URI reference. In the simplest case, each such reference will indicate an element in the current document (or in some other document), for example by supplying the value used for its global xml:id attribute. It may however carry as value any form of URI, such as a URL pointing to some other document or location on the Internet. Pointing or linking to external documents and pointing and linking where identifiers are not available is described below in section 16.2 Pointing Mechanisms.
TEI: Using Pointers and Links¶16.1.2 Using Pointers and Links

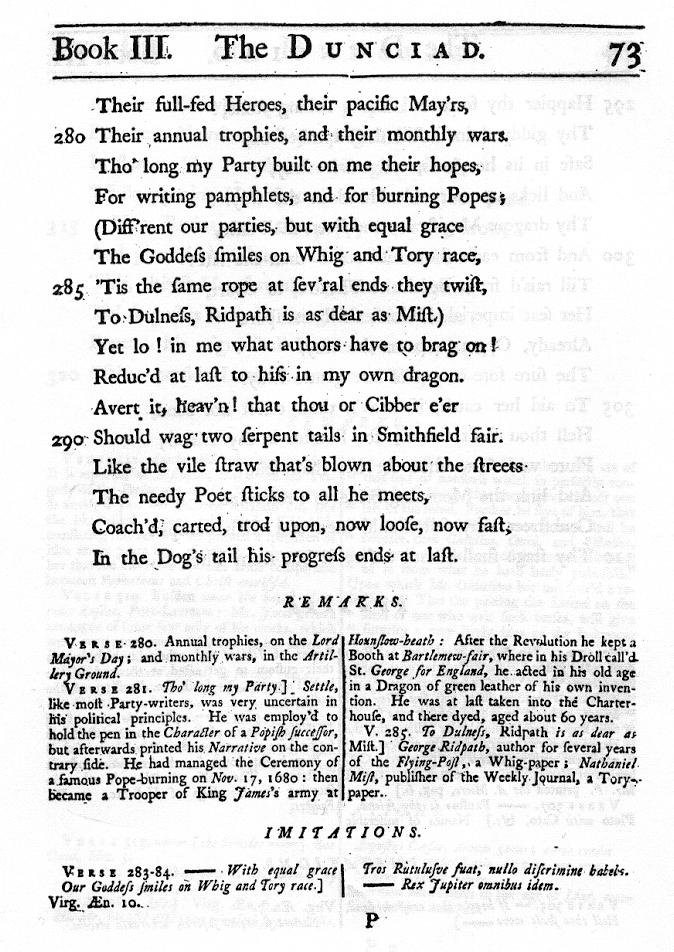

<l>The Goddess smiles on Whig and Tory race,</l>
<l>
<note type="imitation" place="bottom"
anchored="false">
<bibl>Virg. Æn. 10.</bibl>
<quote>
<l>Tros Rutulusve fuat; nullo discrimine habebo.</l>
<l>—— Rex Jupiter omnibus idem.</l>
</quote>
</note>'Tis the same rope at sev'ral ends they twist,
</l>
<l>To Dulness, Ridpath is as dear as Mist)</l>
This use of the note element can be called implicit pointing (or implicit linking). It relies on the juxtaposition of the note to the text being commented on for the connection to be understood. If it is felt that the mere juxtaposition of the note to the text does not make it sufficiently clear exactly what text segment is being commented on (for example, is it the immediately preceding line, or the immediately preceding two lines, or what?), or if it is decided to place the note at some distance from the text, then the pointing or the linking must be made explicit. We now consider various methods for doing that.
<l>The Goddess smiles on Whig and Tory race,
<ptr rend="unmarked" target="#note3.284"/>
</l>
<l>'Tis the same rope at sev'ral ends they twist,</l>
<l>To Dulness, Ridpath is as dear as Mist)</l>
<note xml:id="note3.284" type="imitation"
place="bottom" anchored="false">
<bibl>Virg. Æn. 10.</bibl>
<quote>
<l>Tros Rutulusve fuat; nullo discrimine habebo.</l>
<l>—— Rex Jupiter omnibus idem.</l>
</quote>
</note>
<l xml:id="L3.284">The Goddess smiles on Whig and Tory race,</l>
<l xml:id="L3.285">'Tis the same rope at sev'ral ends they twist,</l>
<l xml:id="L3.286">To Dulness, Ridpath is as dear as Mist)</l>
<!-- ... -->
anchored="false" target="#L3.284">
<ref rend="sc" target="#L3.284">Verse 283–84.
<quote>
<l>——. With equal grace</l>
<l>Our Goddess smiles on Whig and Tory race.</l>
</quote>
</ref>
<bibl>Virg. Æn. 10.</bibl>
<quote>
<l>Tros Rutulusve fuat; nullo discrimine habebo.</l>
<l>—— Rex Jupiter omnibus idem. </l>
</quote>
</note>
- a pointer within one line indicates the note
- the note indicates the line
- a pointer within the note indicates the line
place="bottom" anchored="false">
<ref rend="sc" target="#L3.284">Verse 283–84.
<quote>
<l>——. With equal grace</l>
<l>Our Goddess smiles on Whig and Tory race.</l>
</quote>
</ref>
<bibl>Virg. Æn. 10.</bibl>
<quote>
<l>Tros Rutulusve fuat; nullo discrimine habebo.</l>
<l>—— Rex Jupiter omnibus idem. </l>
</quote>
</note>
<link target="#n3.284 #L3.284"/>
anchored="false">
<ref rend="sc" xml:id="r3.284"
target="#L3.284">Verse 283–84.
<quote>
<l>——. With equal grace</l>
<l>Our Goddess smiles on Whig and Tory race.</l>
</quote>
</ref>
<!-- ... -->
</note>
<!-- ... -->
<link target="#r3.284 #L3.284"/>
TEI: Groups of Links¶16.1.3 Groups of Links
Clearly, there are many reasons for which an encoder might wish to represent a link or association between different elements. For some of them, specific elements are provided in these Guidelines; some of these are discussed elsewhere in the present chapter. The link element is a general purpose element which may be used for any kind of association. The element linkGrp may be used to group links of a particular type together in a single part of the document; such a collection may be used to represent what is sometimes referred to in the literature of Hypertext as a web, a term introduced by the Brown University FRESS project in 1969, and not to be confused with the World Wide Web.
- linkGrp (gruppo di collegamenti) definisce una raccolta di associazioni o legami ipertestuali
As a member of the class att.pointing.group, this element shares the following attributes with other members of that class:
- att.pointing.group definisce un insieme di attributi comuni a tutti gli elementi che includono gruppi di puntatori
domains stabilisce facoltativamente gli identificatori di elementi all'interno dei quali si trovano tutti gli elementi indicati dai contenuti dell'elemento in questione targFunc (funzione obiettivo) descrive la funzione di ognuno dei valori dell'attributo target dei marcatori corrispondenti link, join, o alt
It is also a member of the att.pointing and att.typed classes, and therefore also carries the attributes specified in section 16.1.1 Pointers and Links above, in particular the type attribute.
The linkGrp element provides a convenient way of establishing a default for the type attribute on a group of links of the same type: by default, the type attribute on a link element has the same value as that given for type on the enclosing linkGrp.
<l xml:id="L2.80">Where from Ambrosia, Jove retires for ease.</l>
<!-- ... -->
<l xml:id="L2.88">Sign'd with that Ichor which from Gods distills.</l>
<!-- ... -->
<note xml:id="n2.79" place="bottom"
anchored="false">
<bibl>Ovid Met. 12.</bibl>
<quote xml:lang="la">
<l>Orbe locus media est, inter terrasq; fretumq;</l>
<l>Cœlestesq; plagas —</l>
</quote>
</note>
<note xml:id="n2.88" place="bottom"
anchored="false"> Alludes to <bibl>Homer, Iliad 5</bibl> ...
</note>
<link target="#n2.79 #L2.79"/>
<link target="#n2.88 #L2.88"/>
<link target="#n3.284 #L3.284"/>
</linkGrp>
<!-- ... --><linkGrp type="imitation"
domains="#dunciad #dunnotes">
<link target="#n2.79 #L2.79"/>
<link target="#n2.88 #L2.88"/>
<!-- ... -->
<link target="#n3.284 #L3.284"/>
<!-- ... -->
</linkGrp>
Note that there must be a single parent element for each ‘domain’; if some notes are contained by a section with identifier dunnotes, and others by a section with identifier dunimits, an intermediate pointer must be provided (as described in section 16.1.4 Intermediate Pointers) within the linkGrp and its identifier used instead.
domains="#dunciad #dunnotes" targFunc="source goal">
<link target="#n2.79 #L2.79"/>
<link target="#n2.88 #L2.88"/>
<!-- ... -->
<link target="#n3.284 #L3.284"/>
<!-- ... -->
</linkGrp>
TEI: Intermediate Pointers¶16.1.4 Intermediate Pointers
In the preceding examples, we have shown various ways of linking an annotation and a single verse line. However, the example cited in fact requires us to encode an association between the note and a pair of verse lines (lines 284 and 285); we call these two lines a span.
There are a number of possible ways of correcting this error: one could use the target attribute to indicate one end of the span and the special purpose targetEnd attribute on the note element to point to the other. Another possibility might be to create an element which represents the whole span itself and assign that an xml:id attribute, which can then be linked to the note and ref elements. This could be done using for example the lg element defined in section 3.12.1 Core Tags for Verse or the ‘virtual’ join element discussed in section 16.7 Aggregation.
target="#L3.283 #L3.284"/>
target="#n3.284 #r3.284 #L3.283-284"/>
The all value of evaluate is used on the link element to specify that any pointer encountered as a target of that element is itself evaluated. If evaluate had the value none, the link target would be the pointer itself, rather than the objects it points to.
Where a linkGrp element is used to group a collection of link elements, any intermediate pointer elements used by those link elements should be included within the linkGrp.
TEI: Pointing Mechanisms¶16.2 Pointing Mechanisms
This section introduces more formally the pointing mechanisms available in the TEI. In addition to those discussed so far, the TEI provides methods of pointing:
- into documents other than the current document;
- to a particular element in a document other than the current document using its xml:id;
- to a particular element whether in the current document or not, using its position in the XML element tree;
- at arbitrary content in any XML document using TEI-defined XPointer schemes.
All TEI attributes used to point at something else are declared as having the datatype data.pointer, which is defined as a URI reference59; the cases so far discussed are all simple examples of a URI reference. Another familiar example is the mechanism used in XHTML to create represent hypertext links by means of the XHTML href attribute. A URI reference can reference the whole of an XML resource such as a document or an XML element, or a sub-portion of such a resource, identified by means of an appropriate fragment identifier. Technically speaking, the ‘fragment identifier’ is that portion of a URI reference following the first unescaped ‘#’ character; in practice, it provides a means of accessing some part of the resource described by the URI which is less than the whole.
The first three of the following subsections provide only a brief overview and some examples of the W3C mechanisms recommended. More detailed information on the use of these mechanisms is readily available elsewhere.
TEI: Pointing Elsewhere¶16.2.1 Pointing Elsewhere
Like the ubiquitous if misnamed XHTML pointing attribute href, the TEI pointing attributes can point to a document that is not the current document (the one that contains the pointing element) whether it is in the same local filesystem as the current document, or on a different system entirely. In either case, the pointing can be accomplished absolutely (using the entire address of the target document) or relatively (using an address relative to the current base URI in force). The ‘current base URI’ is defined according to Marsh 2001. If there is none, the base URI is that of the current document. In common practice the current base URI in force is likely to be the value of the xml:base attribute of the closest ancestor that has one. However this may not be the case, since xml:base attributes are accumulated through the hierarchy by concatenation of path segments, beginning at the top of the hierarchy and proceeding down to the context node.
W3C <ref target="http://www.w3.org/TR/xmlbase/">XML
Base</ref> recommendation.
of the <ref target="file:///usr/share/common-licenses/GPL-2">GNU General Public License</ref>.

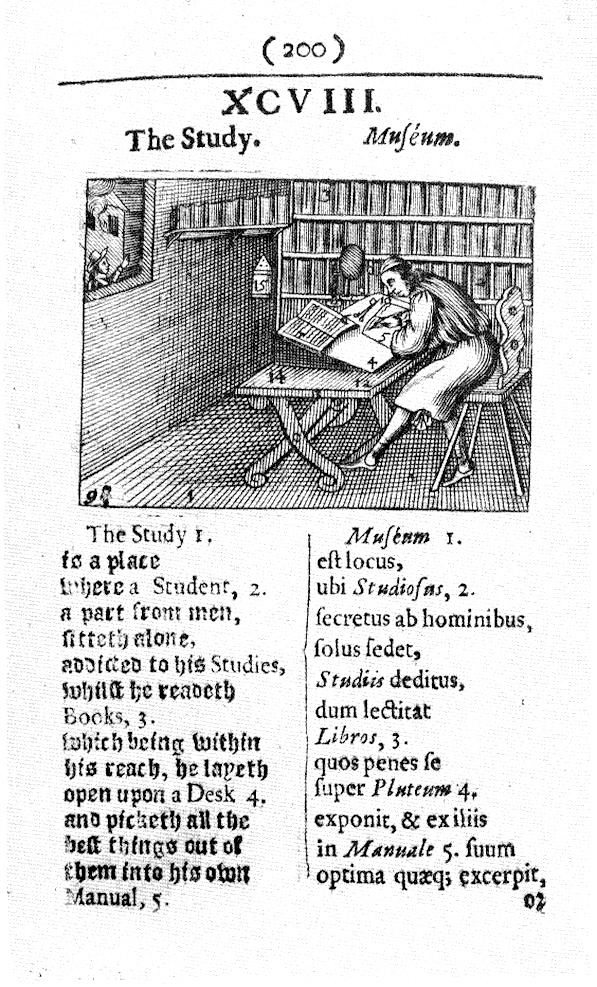

<graphic url="Images/compic.png"/>
<figDesc>The figure shows the page from the <title>Orbis
pictus</title> of Comenius which is discussed in the text.</figDesc>
</figure>
xml:base="http://classics.mit.edu/">
<head>On Ancient Persian Manners</head>
<p>In the very first story of <ref target="Sadi/gulistan.2.i.html">
<title>The Gulistan of
Sa'di</title>
</ref>,
Sa'di relates moral advice worthy of Miss Minners ...</p>
<!-- ... -->
</div>
<div n="A">
<p>The base URI here is the current document. A URI such as
<code>a.xml</code> is equivalent to
<code>./a.xml</code>.</p>
</div>
<div n="B"
xml:base="http://www.example.org/">
<p>The base URI here is
<code>http://www.example.org/</code>. A
URI such as <code>a.xml</code> is equivalent to
<code>http://www.example.org/a.xml</code>.</p>
</div>
<div n="C"
xml:base="ftp://ftp.example.net/mirror/">
<p>The base URI here is
<code>ftp://ftp.example.net/mirror/</code>. A URI such
as
<code>a.xml</code> is equivalent to
<code>ftp://ftp.example.net/mirror/a.xml</code>.</p>
</div>
<div n="D">
<p>The base URI here is the current document. A URI such as
<code>a.xml</code> is equivalent to
<code>./a.xml</code>.</p>
</div>
</body>
TEI: Pointing Locally¶16.2.2 Pointing Locally
<!-- ... -->
</div>
<div type="section" n="107" xml:id="sect107">
<head>Limitations on exclusive rights: Fair use</head>
<p>Notwithstanding the provisions of
<ref target="#sect106">section 106</ref>, the fair use of a
copyrighted work, including such use by reproduction in copies
or phonorecords or by any other means specified by that section,
for purposes such as criticism, comment, news reporting,
teaching (including multiple copies for classroom use),
scholarship, or research, is not an infringement of copyright.
In determining whether the use made of a work in any particular
case is a fair use the factors to be considered shall
include —
<list rend="bulleted">
<item n="(1)">the purpose and character of the use, including
whether such use is of a commercial nature or is for nonprofit
educational purposes;</item>
<item n="(2)">the nature of the copyrighted work;</item>
<item n="(3)">the amount and substantiality of the portion
used in relation to the copyrighted work as a whole;
and</item>
<item n="(4)">the effect of the use upon the potential market
for or value of the copyrighted work.</item>
</list>
The fact that a work is unpublished shall not itself bar a
finding of fair use if such finding is made upon consideration
of all the above factors.</p>
</div>
TEI: Using Abbreviated Pointers¶16.2.3 Using Abbreviated Pointers
xml:base is a useful way of handling the repeated use of long external URIs. However, it is less convenient when your text contain many references to a variety of different sources in different locations. Even in the case of relative links on the local file system, ref or target attributes may become quite lengthy and make XML code difficult to read. To deal with this problem, the TEI provides a useful method of using abbreviated pointers and documenting a way to dereference them automatically.
Imagine a project which has a large collection of XML documents organized like this:
- anthology
- poetry
- poem.xml
- prose
- novel.xml
- poetry
- references
- people
- personography.xml
- people
- listPrefixDef (list of prefix definitions) contains a list of definitions of prefixing schemes used in data.pointer values, showing how abbreviated URIs using each scheme may be expanded into full URIs.
- prefixDef (prefixing scheme used in data.pointer values) defines a prefixing scheme used in data.pointer values, showing how abbreviated URIs using the scheme may be expanded into full URIs.
ident supplies a name which functions as the prefix for an abbreviated pointing scheme such as a private URI scheme. The prefix constitutes the text preceding the first colon. - att.patternReplacement provides attributes for regular-expression matching and replacement.
matchPattern specifies a regular expression against which the values of other attributes can be matched. replacementPattern specifica un ‘replacement pattern’ che, una volta applicato un sub-pattern di sostituzione, fornisce un URI.
<prefixDef ident="psn"
matchPattern="([a-z]+)"
replacementPattern="../../references/people/personography.xml#$1">
<p> In the context of this project, private URIs with the prefix
"psn" point to <gi>person</gi> elements in the project's
personography.xml file.
</p>
</prefixDef>
</listPrefixDef>
Through this mechanism, any processor which encounters a data.pointer with a protocol unknown to it can check the listPrefixDef in the header to see if there is an available expansion for it, and if there is, it can automatically provide the expansion and generate a full or relative URI.
matchPattern="([a-z]+)"
replacementPattern="http://www.example.com/personography.html#$1">
<p> Private URIs with the prefix "psn" can be converted to point
to a fragment on the Personography page of the project Website.
</p>
</prefixDef>
When creating private URI schemes, it is recommended that you avoid using any existing registered prefix. A list of registered prefixes is maintained by IANA at http://www.iana.org/assignments/uri-schemes.html.
Note that this mechanism can also be used to dereference other abbreviated pointing systems which are based on prefixes, such as Tag URIs.
The matchPattern and replacementPattern attributes are also used in dereferencing canonical reference patterns, and further examples of the use of regular expressions are shown in 16.2.5 Canonical References.
TEI: TEI XPointer Schemes¶16.2.4 TEI XPointer Schemes
The pointing schemes described in this chapter are part of a number of such schemes envisaged by the W3C, which together constitute a framework for addressing data within XML documents, known as the XPointer Framework (Grosso et al 2003). This framework permits the definition of many other named addressing methods, each of which is known as an XPointer Scheme. The W3C has predefined a set of such schemes, and maintains a register for their expansion.
One important scheme, also defined by the W3C, and recommended by these Guidelines is the xpath() pointer scheme, which allows for any part of an XML structure to be selected using the syntax defined by the XPath specification. This is further discussed below, 16.2.4.2 xpath(). These Guidelines also define six other pointer schemes, which provide access to parts of an XML document such as points within data content or stretches of data content. These additional TEI pointer schemes are defined in sections 16.2.4.3 left() to 16.2.4.8 match() below.
TEI: Introduction to TEI Pointers¶16.2.4.1 Introduction to TEI Pointers
Before discussing the TEI pointer schemes, we introduce slightly more formally the terminology used to define them. So far, we have discussed only ways of pointing at components of the XML information set node such as elements and attributes. However, there is often a need in text analysis to address additional types of location such as the ‘point’ locations between ‘nodes’, and ‘sequences’ that may arbitrarily cross the boundaries of nodes in a document. The content of an XML document is organized sequentially as well as hierarchically, and it makes sense to consider ranges of characters within a document independently of the nodes to which they belong. From the perspective of most of the pointer schemes discussed below, a TEI document is a tree structure superimposed upon a character stream. Nodes are entities available only in the tree, while points are available only in the stream. For this reason, the schemes below that rely upon character positions (string-index()
, string-range()
, and match()
) cannot take nodes into account. Similarly, XPath, being a method for locating nodes in the tree, treats those nodes as atomic, and is unable to address parts of nodes in their document context.
The TEI pointer scheme thus distinguishes the following kinds of object:
- Node
- A node is an instance of one of the node kinds defined in the XQuery 1.0 and XPath 2.0 Data Model (Second Edition). It represents a single item in the XML information set for a document. For pointing purposes, the only nodes that are of interest are Text Nodes, Element Nodes, and Attribute nodes.
- Sequence
- A Sequence follows the definition in the XPath 2.0 Data Model, with one alteration. A Sequence is an ordered collection of zero or more items, where an item is either a node or a partial text node.
- Text Stream
- A Text Stream is the concatenation of the text nodes in a document and behaves as though all tags had been removed. A text stream begins at a reference node and encompasses all of the text inside that node (if any) and all the text following it in document order. In XPath terms, this would encompass all of the text nodes beginning at a particular node, and following it on the following axis.
- Point
- A Point represents a dimensionless point between nodes or characters in a document. Every point is adjacent to either characters or elements, and never to another point. Points can only be referenced in relation to an element or text node in the document (i.e. something addressable by either an XPath or a fragment identifier). Points occur either immediately before or after an element, or at a numbered position inside a text stream. Position zero in the stream would be immediately before the first character. Note that points within attribute values cannot mark the beginning or end of a range extending beyond the attribute value, because points indicate a position within a document. Since attribute nodes are by definition un-ordered, they cannot be said to have a fixed position.
The TEI recommends the following seven pointer schemes:
- xpath()
- Addresses a node or nodeset using the XPath syntax. (16.2.4.2 xpath())
- left() and right()
- addresses the point before (left) or after (right) a node or node set (16.2.4.3 left() and 16.2.4.4 right())
- string-index()
- addresses a point inside a text node (16.2.4.5 string-index()
- range()
- addresses the range between two points (16.2.4.6 range())
- string-range()
- addresses a range of a specified length starting from a specified point (16.2.4.7 string-range())
- match()
- addresses a range which matches a specified string within a node (16.2.4.8 match())
The xpath() scheme refers to the existing XPath specification which is adopted with one modification: the default namespace for any XPath used as a parameter to this scheme is assumed to be the TEI namespace http://www.tei-c.org/ns/1.0
.
The other six schemes overlap in functionality with a W3C draft specification known as the XPointer scheme draft, but are individually much simpler. At the time of this writing, there is no current or scheduled activity at the W3C towards revising this draft or issuing it as a recommendation.
A note on namespaces: The W3C defines an xmlns() scheme (see XPointer xmlns() Scheme) which when prepended to a resolvable pointer allows for the definition of namespace prefixes to be used in XPaths in subsequent pointers. TEI Pointer schemes assume that un-prefixed element names in TEI Pointer XPaths are in the TEI namespace, http://www.tei-c.org/ns/1.0
. The use of xmlns() is thus optional, provided no new prefixes need to be defined. If the schemes described here are used to address non-TEI elements, then any new prefixes to be used in pointer XPaths may be defined using the xmlns() scheme.
TEI: xpath()¶16.2.4.2 xpath()
Sequence xpath(XPATH)
The xpath() scheme locates a node within an XML Information Set. The single argument XPATH is an XPath path expression, following the latest scheme adopted by the W3C (currently XPath 2.0), that returns a sequence. XPaths returning atomic values (e.g. substring()) are illegal in the xpath() scheme because they represent extracted values rather than locations in the source document. XPath expressions that address attribute nodes are only advisable in the xpath() scheme.
xml:space="preserve"><ab> <lb n="1" xml:id="line1"/><supplied reason="lost">si</supplied> non <choice><reg>habui</reg><orig>abui</orig></choice> quidquam vaco <lb n="2"/>si<gap reason="illegible" quantity="3"
unit="character"/>b<gap reason="illegible" quantity="3"
unit="character"/> cohort<unclear>e</unclear> mi rescribas <lb n="3"/><unclear>s</unclear>emp<unclear>er</unclear> in <choice><reg>mente</reg><orig>mentem</orig></choice> <choice><reg>habe</reg><orig>abe</orig></choice> supra res <lb n="4"/>scriptas<gap reason="lost" extent="unknown"
unit="character"/> <lb n="5"/>auge et opto u<unclear>t</unclear> bene valeas</ab>
</div>
A TEI Pointer that referenced the "normalized" form in the choice
in line 1 of the example might look like: #xpath(//lb[@n='1']/following-sibling::choice/reg)
.
When an XPath is interpreted by a TEI processor, the information set of the referenced document is interpreted without any additional information supplied by any schema processing that may or may not be present. In particular this means that no whitespace normalization is applied to a document before the XPath is interpreted.
This pointer scheme allows easy, direct use of the most widely-implemented XML query method. It is probably the most robust pointing mechanism for the common situation of selecting an XML element or its contents where an xml:id is not present. The ability to use element names and attribute names and values makes xpath() pointers more robust than the other mechanisms discussed in this section even if the designated document changes. For durability in the presence of editing, use of xml:id is always recommended when possible.
TEI: left()¶16.2.4.3 left()
Point left( IDREF | XPATH )
The left() scheme locates the point immediately preceding the node addressed by its argument, which is either an XPATH as defined above or an IDREF, the value of an xml:id occurring in the document addressed by the base URI in effect for the pointer.
Example: the pointer #left(//gap[1])
indicates the point between the first lb
and the first gap
in the example above.
Example: #left(line1)
indicates the point immediately before the <lb n="1"/>
element.
TEI: right()¶16.2.4.4 right()
Point right( IDREF | XPATH )
The right() scheme locates the point immediately following the node addressed by its argument.
Example: the pointer #right(//lb[@n='3'])
indicates the point between the third lb
and the <unclear>s</unclear>
element in the example.
TEI: string-index()¶16.2.4.5 string-index()
Point string-index( IDREF | XPATH, OFFSET )
The string-index() scheme locates a point based on character positions in a text stream relative to the node identified by the IDREF or XPATH parameter. The OFFSET parameter is a positive, negative, or zero integer which determines the position of the point. An offset of 0 represents the position immediately before the first character in either the first text node descendant of the node addressed in the first parameter or the first following text node, if the addressed element contains no text node descendants.
Example: #string-index(//lb[@n='2'],1)
indicates the point between the ‘s’ and the ‘i’ in the word ‘si’ in line 2.
Note: The OFFSET parameter (and similarly the LENGTH parameter found below in the string-range() scheme) are measured in characters. What is considered a single character will depend (assuming the document being evaluated is in Unicode) on the Normalization Form in use (see UNICODE NORMALIZATION FORMS). A letter followed by a combining diacritic counts as two characters, but the same diacritic precombined with a letter would count as a single character. Compare, for example, é (\u0060
followed by \u0301
) and é (\u00E9
). These are equivalent, and a conversion between Normalization Forms C and D will transform one into the other. This specification does not mandate a particular Normalization Form (see Precomposed and Combining Characters and Normalization), but users and implementers should be aware that it affects the character count and therefore the result of evaluating pointers that rely on character counting.
TEI: range()¶16.2.4.6 range()
Sequence range( POINTER, POINTER[, POINTER, POINTER ...])
The range() scheme takes as parameters one or more pairs of POINTERs, which are each members of the set IDREF, XPATH, left(), right(), or string-index(). A range() locates a (possibly non-contiguous) sequence beginning at the first POINTER parameter and ending at the last. If the POINTER locates a node (i.e. is an XPATH or IDREF), then that node is a member of the addressed sequence. If a sequence addressed by a range pointer overlaps, but does not wholly contain, an element (i.e. it contains only the start but not the end tag or vice-versa), then that element is not part of the sequence.
Range()s may address sequences of non-contiguous nodes. For example, a range() might select text beginning before an app, encompassing the content of a single rdg and continuing after the app.
Example: #range(left(//lb[@n='3']),left(//lb[@n='4']))
indicates the whole of line 4 from the <lb n="3"/>
to the point right before the following <lb n="4"/>
.
Example: #range(right(//lb[@n='3']),string-index(//lb[@n='3'],15))
indicates the sequence <unclear>s</unclear>emp<unclear>er</unclear> in mente
.
Example: #range(string-index(//lb[@n='3'],7),string-index(//lb[@n='3'],10),string-index(//lb[@n='3'],15),string-index(//lb[@n='3'],21))
indicates the non-contiguous sequence ‘in mentem’.
TEI: string-range()¶16.2.4.7 string-range()
Sequence string-range(IDREF | XPATH, OFFSET, LENGTH[, OFFSET, LENGTH ...])
The string-range() scheme locates a sequence based on character positions in a text stream relative to the node identified by the first parameter. The location of the beginning of the addressed sequence is determined precisely as for string-index(). The OFFSET parameter is defined as above in string-index(). The LENGTH parameter is a positive integer that denotes the length of the text stream captured by the sequence. As with range(), the addressed sequence may contain text nodes and/or elements. The string-range() scheme, can accept multiple OFFSET, LENGTH pairs to address a non-contiguous sequence in mauch the same way that range() can accept multiple pairs of pointers.
Because string-range() addresses points in the text stream, tags are invisible to it. For example, if an empty tag like lb is encountered while processing a string-range(), it will be included in the resulting sequence, but the LENGTH count will not increment when it is captured.
Example: #string-range(//lb[@n='5'],0,27)
indicates the whole of line 5 from the text immediately following the lb
to the point right before the closing ab
tag.
Example: #string-range(//lb[@n='3'],7,8)
indicates the sequence ‘in mente’.
Example: #string-range(//lb[@n='3'],7,3,15,6)
indicates the non-contiguous sequence ‘in mentem’.
TEI: match()¶16.2.4.8 match()
Sequence match(IDREF | XPATH, 'REGEX' [, INDEX])
The match scheme locates a sequence based on matching the REGEX parameter against a text stream relative to the reference node identified by the first parameter. REGEX is a regular expression as defined by XQuery 1.0 and XPath 2.0 Functions and Operators (Second Edition), with some modifications:
- Because the regular expression is delimited by apostrophe characters, any such characters (
'
or\u0027
) occurring inside the expression must be escaped using the URI percent-encoding scheme%27
. - Regular expressions in
match()
are assumed to operate in multi-line mode. The end of the string to be matched against is either the end of the text contained by the element in the first parameter or the end of the document, if that parameter indicates an empty element. The meta-character^
therefore matches the beginning of the text stream inside or following the reference node, and the meta-character$
matches the end of that stream.
The optional INDEX parameter is an integer greater than 0 which specifies which match should be chosen when there is more than one possibility. If omitted, the first match in the text stream will be used.
Like string-range()
, match()
may capture elements in the returned sequence, even though they are ignored for purposes of evaluating the match.
Example: #match(//lb[@n='5'],'opto.*valeas')
indicates the sequence opto u<unclear>t</unclear> bene valeas
in line 5.
Example: #match(//lb[@n='3'],'semper')
would indicate the word ‘semper’, but would not capture the unclear
elements in <unclear>s</unclear>emp<unclear>er</unclear>
, just their text children.
TEI: Canonical References¶16.2.5 Canonical References
By ‘canonical’ reference we mean any means of pointing into documents, specific to a community or corpus. For example, biblical scholars might understand ‘Matt 5:7’ to mean ‘the book called Matthew, chapter 5, verse 7.’ They might then wish to translate the string ‘Matt 5:7’ into a pointer into a TEI-encoded document, selecting the element which corresponds to the seventh div element within the fifth div element within the div element with the n attribute valued ‘Matt.’
Several elements in the TEI scheme (gloss, ptr, ref, and term) bear a special attribute, cRef, just for this purpose. Using the system described in this section, an encoder may specify references to canonical works in a discipline-familiar format, and expect software to derive a complete URI from it. The value of the cRef attribute is processed as described in this section, and the resulting URI reference is treated as if it were the value of the target attribute. The cRef and target attributes are mutually exclusive: only one or the other may be specified on any given occurrence of an element.
#xpath(//div[@n='Matt']/div[5]/div[7])
. The refsDecl element is described in section 2.3.6 The Reference System Declaration; the following example is discussed in more detail below in section 16.2.5.1 Worked Example. <cRefPattern matchPattern="(.+) (.+):(.+)"
replacementPattern="#xpath(//div[@n='$1']/div[@n='$2']/div[@n='$3]')">
<p>This pointer pattern extracts and references the <q>book,</q>
<q>chapter,</q> and <q>verse</q> parts of a biblical reference.</p>
</cRefPattern>
<cRefPattern matchPattern="(.+) (.+)"
replacementPattern="#xpath(//div[@n='$1']/div[$2])">
<p>This pointer pattern extracts and references the <q>book</q> and
<q>chapter</q> parts of a biblical reference.</p>
</cRefPattern>
<cRefPattern matchPattern="(.+)"
replacementPattern="#xpath(//div[@n='$1'])">
<p>This pointer pattern extracts and references just the <q>book</q>
part of a biblical reference.</p>
</cRefPattern>
</refsDecl>
When an application encounters a canonical reference as the value of cRef attribute, it might follow this sequence of specific steps to transform it into a URI reference:
- Ascertain the correct refsDecl following the rules summarized in section 15.3.3 Summary.
- For each cRefPattern element encountered in the appropriate refsDecl, in the order encountered:
- match the value of the cRef attribute to the regular expression found as the value of the matchPattern attribute
- if the value of the cRef attribute matches:
- take the value of the replacementPattern attribute and substitute the back references ($1, $2, etc.) with the corresponding matched substrings
- the result is taken as if it were a relative or absolute URI reference specified on the target attribute; i.e., it should be used as is or combined with the current xml:base attribute value as usual
- no further processing of this value of the cRef attribute against the refsDecl should take place
- if, however, the value of the cRef attribute does not match the regular expression specified in the value of the matchPattern attribute, proceed to the next cRefPattern
- If all the cRefPattern elements are examined in turn and none matches, the pointer fails.
The regular expression language used as the value of the matchPattern attribute is that used for the pattern facet of the World Wide Web Consortium's XML Schema Language in an Appendix to XML Schema Part 2.61 The value of the replacementPattern attribute is simply a string, except that occurrences of ‘$1’ through ‘$9’ are replaced by the corresponding substring match. Note that since a maximum of nine substring matches are permitted, the string ‘$18’ means ‘the value of the first matched substring followed by the character ‘8’’ as opposed to ‘the eighteenth matched substring’. If there is a need for an actual string including a dollar sign followed by a digit that is not supposed to be replaced, the dollar sign should be written as $$
. Implementations must convert $$
to $
during processing.
TEI: Worked Example¶16.2.5.1 Worked Example
Let us presume that with the example refsDecl above, an application comes across a cRef value of Matt 5:7 inside a div which has an xml:base of http://www.example.org/resources/books/Bible.xml. The application would first apply the regular expression (.+) (.+):(.+)
to ‘Matt 5:7’. This regular expression would successfully match. The first matched substring would be ‘Matt’, the second ‘5’, and the third ‘7’. The application would then apply these substrings to the pattern #xpath(//div[@n='$1']/div[$2]/div[$3])
, producing #xpath(//div[@n='Matt']/div[5]/div[7])
. It would append this to the xml:base in force, thus generating the complete URI Reference http://www.example.org/resources/books/Bible.xml#xpath(//div[@n='Matt']/div[5]/div[7])
.
If, however, the input string had been ‘Matt 5’, the first regular expression would not have matched. The application would have then tried the second, (.+) (.+)
, producing a successful match, and the matched substrings ‘Matt’ and ‘5’. It would then have substituted those matched substrings into the pattern #xpath(//div[@n='$1']/div[$2])
to produce a fragment identifier, which when appended to the xml:base in force produces the absolute URI reference http://www.example.org/resources/books/Bible.xml#xpath(//div[@n='Matt']/div[5])
.
If the input string had been ‘Matt’, neither the first nor the second regular expressions would have successfully matched. The application would have then tried the third, (.+)
, producing the matched substring ‘Matt’, and the URI Reference http://www.example.org/resources/books/Bible.xml#xpath(//div[@n='Matt'])
.
replacementPattern="//div[@n='$1']/div[$2]/div[$3]/p[$4]"/>
$4
) was referenced.TEI: Complete and Partial URI Examples¶16.2.5.2 Complete and Partial URI Examples
<cRefPattern matchPattern="([0-9][0-9])\s*U\.?S\.?C\.?\s*[Cc](h(\.|ap(ter|\.)?)?)?\s*([1-9][0-9]*)"
replacementPattern="http://uscode.house.gov/download/pls/$1C$5.txt">
<p>Matches most standard references to particular
chapters of the United States Code, e.g.
<val>11USCC7</val>, <val>17 U.S.C. Chapter 3</val>, or
<val>14 USC Ch. 5</val>. Note that a leading zero is
required for the title (must be two digits), but is not
permitted for the chapter number.</p>
</cRefPattern>
<cRefPattern matchPattern="([0-9][0-9])\s*U\.?S\.?C\.?\s*[Pp](re(lim(inary)?)?)?\s*[Mm](at(erial)?)?"
replacementPattern="http://uscode.house.gov/download/pls/$1T.txt">
<p>Matches references to the preliminary material for a
given title, e.g. <val>11USCP</val>, <val>17 U.S.C.
Prelim Mat</val>, or <val>14 USC pm</val>.</p>
</cRefPattern>
<cRefPattern matchPattern="([0-9][0-9])\s*U\.?S\.?C\.?\s*[Aa](ppend(ix)?)?"
replacementPattern="http://uscode.house.gov/download/pls/$1A.txt">
<p>Matches references to the appendix of a given tile,
e.g. <val>05USCA</val>, <val>11 U.S.C. Appendix</val>,
or <val>18 USC Append</val>.</p>
</cRefPattern>
</refsDecl>
<!-- ... -->
<p>The example in section 10 is taken
from <ref cRef="17 USC Ch 1">Subject Matter and Scope of
Copyright</ref>.</p>
See 16.2.3 Using Abbreviated Pointers for another related use of the matchPattern and replacementPattern attributes.
TEI: Miscellaneous Usages¶16.2.5.3 Miscellaneous Usages
Canonical reference pointers are intended for use by TEI encoders. However, this specification might be useful to the development of a process for recognizing canonical references in non-TEI documents (such as plain text documents), possibly as part of their conversion to TEI.
TEI: Blocks, Segments, and Anchors¶16.3 Blocks, Segments, and Anchors
In this section, we discuss three general purposes elements which may be used to mark and categorize both a span of text and a point within one. These elements have several uses, most notably to provide elements which can be given identifiers for use when aligning or linking to parts of a document, as discussed elsewhere in this chapter. They also provide a convenient way of extending the semantics of the TEI markup scheme in a theory-neutral manner, by providing for two neutral or ‘anonymous’ elements to which the encoder can add any meaning not supplied by other TEI defined elements.
- anchor (punto di ancoraggio) aggancia un indentificatore a una posizione all'interno del testo indipendentemente dal fatto che questa corrisponda o meno a un elemento testuale
- ab (blocco anonimo) contiene una qualsiasi unità testuale a livello di componente che funge da contenitore anonimo di sintagmi o elementi interlivello simili al paragrafo ma senza il bagaglio semantico di quest'ultimo
- seg (segmento arbitrario) contiene una qualsiasi unità testuale a livello sintagmatico (ivi compresi altri elementi del tipo seg)
The elements anchor, ab, and seg are members of the class att.typed, from which they inherit the following attributes:
- att.typed assegna degli attributi generici utilizzabili per qualsiasi classificazione e sottoclassificazione di elementi
type caratterizza l'elemento utilizzando una classificazione o tipologia funzionale subtype stabilisce, se necessario, una sottocategorizzazione dell'elemento
The elements ab, and seg are members of the class att.fragmentable, from which they inherit the following attribute:
- att.fragmentable provides an attribute for representing fragmentation of a structural element, typically as a consequence of some overlapping hierarchy.
part specifies whether or not its parent element is fragmented in some way, typically by some other overlapping structure: for example a speech which is divided between two or more verse stanzas, a paragraph which is split across a page division, a verse line which is divided between two speakers.
The seg element is also a member of the class att.segLike from which it inherits the following attribute:
- att.segLike assegna degli attributi agli elementi usati per una segmentazione arbitraria
function caratterizza la funzione del segmento
The anchor element may be thought of as an empty seg, or as an artifice enabling an identifier to be attached to any position in a text. Like the milestone element discussed in section 3.10 Reference Systems, it is useful where multiple views of a document are to be combined, for example, when a logical view based on paragraphs or verse lines is to be mapped on to a physical view based on manuscript lines. Like those elements, it is a member of the class model.global and can therefore appear anywhere within a document when the module defined by this chapter is included in a schema. Unlike the other elements in its class, the anchor element is primarily intended to mark an arbitrary point used for alignment, or as the target of a spanning element such as those discussed in section 11.3.1.4 Additions and Deletions, rather than as a means of marking segment boundaries for some arbitrary segmentation of a text.
English at all at the time<anchor xml:id="eng2"/>
English was still full of flaws<anchor xml:id="eng3"/>
English. This was revised by young
<anchor xml:id="eng4"/>
The seg element may be used at the encoder's discretion to mark almost any segment of the text of interest for processing. One use of the element is to mark text features for which no appropriate markup is otherwise defined, i.e. as a simple extension mechanism. Another use is to provide an identifier for some segment which is to be pointed at by some other element, i.e. to provide a target, or a part of a target, for a ptr or other similar element.
Several examples of uses for the seg element are provided elsewhere in these Guidelines. For example:
- as a means of marking segments significant in a metrical or rhyming analysis (see section 6.4 Rhyme and Metrical Analysis)
- as a means of marking typographic lines in drama (see section 7.2 The Body of a Performance Text) or title pages (see section 4.6 Title Pages)
- as a means of marking prosody- or pause-defined units in transcribed speech (see section 8.4.1 Segmentation)
- as a means of marking linguistic or other analyses in a theory-neutral manner (see chapter 17 Simple Analytic Mechanisms passim)
<seg type="stutter">I-I-I</seg>'m afraid,</q> Melvin, just say <q>I'm
afraid.</q>
</q>
<seg xml:id="bl0034.1" type="phrase">Literate and illiterate speech</seg>
<seg xml:id="bl0034.2" type="phrase">in a language like English</seg>
<seg xml:id="bl0034.3" type="phrase">are plainly different.</seg>
</seg>
<seg type="phrase" subtype="noun">
<seg type="word" subtype="adjective">Literate</seg>
<seg type="word" subtype="conjunction">and</seg>
<seg type="word" subtype="adjective">illiterate</seg>
<seg type="word" subtype="noun">speech</seg>
</seg>
<seg type="phrase" subtype="preposition">
<seg type="word" subtype="preposition">in</seg>
<seg type="word" subtype="article">a</seg>
<seg type="word" subtype="noun">language</seg>
<seg type="word" subtype="preposition">like</seg>
<seg type="word" subtype="noun">English</seg>
</seg>
<seg type="phrase" subtype="verb">
<seg type="word" subtype="verb">are</seg>
<seg type="word" subtype="adverb">plainly</seg>
<seg type="word" subtype="adjective">different</seg>
</seg>
<seg type="punct">.</seg>
</seg>
<w type="adjective">Literate</w>
<w type="conjunction">and</w>
<w type="adjective">illiterate</w>
<w type="noun">speech</w>
</phr>
<s xml:id="s1">Sigmund, the <seg type="patronymic">son of Volsung</seg>,
was a king in Frankish country.</s>
<s xml:id="s2">Sinfiotli was the eldest of his sons.</s>
<s xml:id="s3"> ... </s>
</seg>
<!-- Illegal! --> <s>Give me <seg type="phrase">a dozen.</s> <s>Or two or three.</s></seg>
</s>
<s>
<seg part="F">Or two or three.</seg>
</s>
The seg element has the same content as a paragraph in prose: it can therefore be used to group together consecutive sequences of model.inter class elements, such as lists, quotations, notes, stage directions, etc. as well as to contain sequences of phrase-level elements. It cannot however be used to group together sequences of paragraphs or similar text units such as verse lines; for this purpose, the encoder should use intermediate pointers, as described in section 16.1.4 Intermediate Pointers or the methods described in section 16.7 Aggregation. It is particularly important that the encoder provide a clear description of the principles by which a text has been segmented, and the way in which that segmentation is represented. This should include a description of the method used and the significance of any categorization codes. The description should be provided as a series of paragraphs within the segmentation element of the encoding description in the TEI header, as described in section 2.3.3 The Editorial Practices Declaration.
The seg element may also be used to encode simultaneous or mutually exclusive variants of a text when the more special purpose elements for simple editorial changes, abbreviation and expansion, addition and deletion, or for a critical apparatus are not appropriate. In these circumstances, one seg is encoded for each possible variant, and the set of them is enclosed in a choice element.
<seg type="platform" subtype="Mac">option</seg>
<seg type="platform" subtype="PC">alt</seg>
</choice>-f will …
Elsewhere in this chapter we provide a number of examples where the seg element is used simply to provide an element to which an identifier may be attached, for example so that another segment may be linked or related to it in some way.
The ab (anonymous block) element performs a similar function to that of the seg element, but is used for portions of the text which occur not within paragraphs or other component-level elements, but at the component level themselves. It is therefore a member of the model.pLike class.
<head>The First Book of Moses, Called</head>
<head type="main">Genesis</head>
<div2 n="1" type="chapter">
<ab n="1">In the beginning God created the heaven and the
earth.</ab>
<ab n="2">And the earth was without form, and void; and darkness
<hi>was</hi> upon the face of the deep. And the Spirit of God
moved upon the face of the waters.</ab>
<ab n="3">And God said, Let there be light: and there was
light.</ab>
</div2>
</div1>
<head>Das Erste Buch Mose.</head>
<div2 n="1" type="chapter">
<p>
<seg n="1">Am Anfang schuff Gott Himel vnd Erden.</seg>
<seg n="2">Vnd die Erde war wüst vnd leer / vnd es war
finster auff der Tieffe / Vnd der Geist Gottes schwebet auff
dem Wasser.</seg>
</p>
<p>
<seg n="3">Vnd Gott sprach / Es werde Liecht / Vnd es ward
Liecht.</seg>
</p>
</div2>
</div1>
<div2 n="1" type="scene">
<head rend="italic">Actus primus, Scena prima.</head>
<stage rend="italic" type="setting"> A tempestuous noise of
Thunder and Lightning heard:
Enter a Ship-master, and a Boteswaine.</stage>
<sp>
<speaker>Master.</speaker>
<ab>Bote-swaine.</ab>
</sp>
<sp>
<speaker>Botes.</speaker>
<ab>Heere Master: What cheere?</ab>
</sp>
<sp>
<speaker>Mast.</speaker>
<ab>Good: Speake to th' Mariners: fall too't, yarely,
or we run our selues a ground, bestirre, bestirre.
<stage type="move">Exit.</stage>
</ab>
</sp>
<stage type="move">Enter Mariners.</stage>
<sp>
<speaker>Botes.</speaker>
<ab>Heigh my hearts, cheerely, cheerely my harts: yare, yare:
Take in the toppe-sale: Tend to th' Masters whistle: Blow
till thou burst thy winde, if roome e-nough.</ab>
</sp>
</div2>
</div1>
TEI: Correspondence and Alignment¶16.4 Correspondence and Alignment
In this section we introduce the notions of correspondence, expressed by the corresp attribute, and of alignment, which is a special kind of correspondence involving an ordered set of correspondences. Both cases may be represented using the link and linkGrp elements introduced in section 16.1 Links. We also discuss the special case of alignment in time or synchronization, for which special purpose elements are proposed in section 16.5 Synchronization.
TEI: Correspondence¶16.4.1 Correspondence
A common requirement in text analysis is to represent correspondences between two or more parts of a single document, or between places in different documents. Provided that explicit elements are available to represent the parts or places to be linked, then the global linking attribute corresp may be used to encode such correspondence, once it has been identified.
- att.global.linking definisce un insieme di attributi per ipertesto o altro legame abilitati per tutti gli elementi quando è selezionato il sottoinsieme di marcatori per i collegamenti
corresp (corrispondente) punta a elementi che hanno una qualche corrispondenza con l'elemento corrente
This is one of the attributes made available by the mechanism described in the introduction to this chapter (16 Linking, Segmentation, and Alignment). Correspondence can also be expressed by means of the link element introduced in section 16.1 Links.
Where the correspondence is between spans, the seg element should be used, if no other element is available. Where the correspondence is between points, the anchor element should be used, if no other element is available.
its Friday night debut only a month ago, was
not listed on <name xml:id="NBC">NBC</name>'s new schedule,
although <seg corresp="#NBC" xml:id="NETWORK">the network</seg>
says <seg corresp="#SHIRLEY" xml:id="SHOW">the show</seg>
still is being considered.
its Friday night debut only a month ago, was not
listed on <name xml:id="nbc">NBC</name>'s new schedule,
although <seg xml:id="network">the network</seg> says
<seg xml:id="show">the show</seg> still is being considered.
<linkGrp type="anaphoric_link"
targFunc="antecedent anaphor">
<link target="#shirley #show"/>
<link target="#nbc #network"/>
</linkGrp>
<!-- ... -->
English at all at the time
<anchor xml:id="en2"/>
<!-- ... -->
English was still full of flaws
<anchor xml:id="en3"/>
<!-- ... -->
English. This was revised by young
<anchor xml:id="en4"/>
<!-- ... -->
<linkGrp type="five-word_collocates">
<link type="collocates_of_ENGLISH"
target="#en1 #en2 #en3 #en4"/>
<!-- ... -->
</linkGrp>
TEI: Alignment of Parallel Texts¶16.4.2 Alignment of Parallel Texts
One very important application area for the alignment of parallel texts is multilingual corpora. Consider, for example, the need to align ‘translation pairs’ of sentences drawn from a corpus such as the Canadian Hansard, in which each sentence is given in both English and French. Concerning this problem, Gale and Church write:
The alignment produced by Gale and Church's program can be expressed in four different ways. The encoder must first decide whether to represent the alignment in terms of points within each text (using the anchor element) or in terms of whole stretches of text, using the seg element. To some extent the choice will depend on the process by which the software works out where alignment occurs, and the intention of the encoder. Secondly, the encoder may elect to represent the actual encoding using either corresp attributes attached to the individual anchor or seg elements, or using a free-standing linkGrp element.
<p>
<anchor corresp="#fa1" xml:id="ea1"/>According to our survey, 1988
sales of mineral water and soft drinks were much higher than in 1987,
reflecting the growing popularity of these products. Cola drink
manufacturers in particular achieved above-average growth rates.
<anchor corresp="#fa2" xml:id="ea2"/>The higher turnover was largely
due to an increase in the sales volume.
<anchor corresp="#fa3" xml:id="ea3"/>Employment and investment levels also climbed.
<anchor corresp="#fa4" xml:id="ea4"/>Following a two-year transitional period,
the new Foodstuffs Ordinance for Mineral Water came into effect on
April 1, 1988. Specifically, it contains more stringent requirements
regarding quality consistency and purity guarantees.</p>
</div>
<div xml:lang="fr" type="subsection">
<p>
<anchor corresp="#ea1" xml:id="fa1"/>Quant aux eaux minérales
et aux limonades, elles rencontrent toujours plus d'adeptes. En effet,
notre sondage fait ressortir des ventes nettement supérieures
à celles de 1987, pour les boissons à base de cola
notamment. <anchor corresp="#ea2" xml:id="fa2"/>La progression des
chiffres d'affaires résulte en grande partie de l'accroissement
du volume des ventes. <anchor corresp="#ea3" xml:id="fa3"/>L'emploi et
les investissements ont également augmenté.
<anchor corresp="#ea4" xml:id="fa4"/>La nouvelle ordonnance fédérale
sur les denrées alimentaires concernant entre autres les eaux
minérales, entrée en vigueur le 1er avril 1988 après
une période transitoire de deux ans, exige surtout une plus
grande constance dans la qualité et une garantie de la
pureté.</p>
</div>
There is no requirement that the corresp attribute be specified in both English and French texts, since (as noted above) this attribute is defined as representing a mutual association. However, it may simplify processing to do so, and also avoids giving the impression that the English is translating the French, or vice versa. More seriously, this encoding does not make explicit that it is in fact the entire stretch of text between the anchors which is being aligned, not simply the points themselves. If for example one text contained material omitted from the other, this approach would not be appropriate.
type="subsection">
<p>
<seg xml:id="e_1">According to our survey, 1988 sales of mineral
water and soft drinks were much higher than in 1987,
reflecting the growing popularity of these products. Cola
drink manufacturers in particular achieved above-average
growth rates.</seg>
<seg xml:id="e_2">The higher turnover was largely due to an
increase in the sales volume.</seg>
<seg xml:id="e_3">Employment and investment levels also climbed.</seg>
<seg xml:id="e_4">Following a two-year transitional period, the new
Foodstuffs Ordinance for Mineral Water came into effect on
April 1, 1988. Specifically, it contains more stringent
requirements regarding quality consistency and purity
guarantees.</seg>
</p>
</div>
<div xml:id="div-f" xml:lang="fr"
type="subsection">
<p>
<seg xml:id="f_1">Quant aux eaux minérales et aux limonades,
elles rencontrent toujours plus d'adeptes. En effet, notre
sondage fait ressortir des ventes nettement
supérieures à celles de 1987, pour les
boissons à base de cola notamment.</seg>
<seg xml:id="f_2">La progression des chiffres d'affaires
résulte en grande partie de l'accroissement du volume
des ventes.</seg>
<seg xml:id="f_3">L'emploi et les investissements ont
également augmenté.</seg>
<seg xml:id="f_4">La nouvelle ordonnance fédérale sur
les denrées alimentaires concernant entre autres les
eaux minérales, entrée en vigueur le 1er avril
1988 après une période transitoire de deux
ans, exige surtout une plus grande constance dans la
qualité et une garantie de la pureté.</seg>
</p>
</div>
<linkGrp type="alignment"
domains="#div-e #div-f">
<link target="#e_1 #f_1"/>
<link target="#e_2 #f_2"/>
<link target="#e_3 #f_3"/>
<link target="#e_4 #f_4"/>
</linkGrp>
type="subsection">
<ab xml:id="english1">
<s>According to our survey, 1988 sales of mineral water and soft
drinks were much higher than in 1987, reflecting the growing popularity
of these products.</s>
<s>Cola drink manufacturers in particular achieved above-average
growth rates.</s>
</ab>
</div>
<div xml:id="french" xml:lang="fr"
type="subsection">
<ab xml:id="french1">
<s xml:id="fs1">Quant aux eaux minérales et aux limonades, elles
rencontrent toujours plus d'adeptes.</s>
<s xml:id="fs2">En effet, notre sondage fait ressortir des ventes nettement
supérieures à celles de 1987, pour les boissons à
base de cola notamment.</s>
</ab>
</div>
TEI: A Three-way Alignment¶16.4.3 A Three-way Alignment
The preceding encoding of the alignment of parallel passages from two texts requires that those texts and the alignment all be part of the same document. If the texts are in separate documents, then complete URIs, whether absolute or relative (section 16 Linking, Segmentation, and Alignment), will be required. These external pointers may appear anywhere within the document, but if they are created solely for use in encoding links, they may for convenience be grouped within the linkGrp (or other grouping element that uses them for linking).
To demonstrate this facility, we consider how we might encode the alignments in an extract from Comenius' Orbis Sensualium Pictus, in the English translation of Charles Hoole (1659).
Each topic covered in this work has three parts: a picture, a prose text in Latin describing the topic, and a carefully-aligned translation of the Latin into English, German, or some other vernacular. Key terms in the two texts are typographically distinct, and are linked to the picture by numbers, which appear in the two texts and within the picture as well.
type="lesson">
<head>The Study</head>
<p>
<seg xml:id="e9801">The Study</seg>
<seg xml:id="e9802">is a place</seg>
<seg xml:id="e9803">where a Student,</seg>
<seg xml:id="e9804">a part from men,</seg>
<seg xml:id="e9805">sitteth alone,</seg>
<seg xml:id="e9806">addicted to his Studies,</seg>
<seg xml:id="e9807">whilst he readeth</seg>
<seg xml:id="e9808">Books,</seg>
</p>
</div>
<div xml:id="l98" xml:lang="la"
type="lesson">
<head>Muséum</head>
<p>
<seg xml:id="l9801">Museum</seg>
<seg xml:id="l9802">est locus</seg>
<seg xml:id="l9803">ubi Studiosus,</seg>
<seg xml:id="l9804">secretus ab hominibus,</seg>
<seg xml:id="l9805">solus sedet,</seg>
<seg xml:id="l9806">Studiis deditus,</seg>
<seg xml:id="l9807">dum lectitat</seg>
<seg xml:id="l9808">Libros,</seg>
</p>
</div>
<image xlink:href="p1764.png" width="597"
height="897" id="p981"/>
<rect id="p982" x="75" y="75" width="25"
height="10"/>
<rect id="p983" x="55" y="42" width="25"
height="10"/>
</svg>
As printed, the Comenius text exhibits three kinds of alignment.
- The English and Latin portions are printed in two parallel columns, with corresponding phrases, (represented above by seg elements), more or less next to each other.
- Particular words or phrases are marked as terms in the two languages by a change of rendition: the English text, which otherwise uses black letter type throughout, has the words The Study, a Student, Studies, and Books in a roman font; in the Latin text, which is printed in roman, the corresponding words (Museum, Studiosus, Studiis, and Libros) are all in italic.
- Numbered labels appear within the text portions, linking keywords to each other and to sections of the picture. These labels, which have been left out of the above encoding, are attached to the first, third, and last segments in each language quoted below, and also appear (rather indistinctly) within the picture itself. Thus, the images of the study, the student, and his books are each aligned with the correct term for them in the two languages.
<!--... --><seg xml:id="xe9803">where a <ref n="2" target="#xp982">Student</ref>,</seg>
<seg xml:id="xl9803">ubi <ref n="2" target="#xp982">Studiosus</ref>,</seg>
<!--... -->
<link target="#xe9801 #xl9801 #xp981"/>
<link target="#xe9802 #xl9802"/>
<link target="#xe9803 #xl9803 #xp982"/>
<link target="#xe9804 #xl9804"/>
<link target="#xe9805 #xl9805"/>
<link target="#xe9806 #xl9806"/>
<link target="#xe9807 #xl9807"/>
<link target="#xe9808 #xl9808 #xp983"/>
</linkGrp>
This map, of course, only aligns whole segments and image portions, since these are the only parts of our encoding which bear identifiers and can therefore be pointed to. To add to it the alignment between the typographically distinct words mentioned above, new elements must be defined, either within the text itself or externally by using stand off techniques. Encoding these word pairs as term and gloss, although intuitively obvious, requires a non-trivial decision as to whether the Latin text is glossing the English, or vice versa. Tagging all the marked words as term avoids the difficult decision, but might be thought by some encoders to convey the wrong information about the words in question. Simply tagging them as additional embedded seg elements with identifiers that can be aligned like the others is also a possibility.
type="lesson">
<head>The Study</head>
<ab>The Study</ab>
<ab>is a place</ab>
<ab>where a Student,</ab>
</div>
<div xml:id="L98" xml:lang="la"
type="lesson">
<head>Muséum</head>
<ab>Museum</ab>
<ab>est locus</ab>
<ab>ubi Studiosus,</ab>
</div>
<link target="#xpath(//div[@xml:id='L98']/ab[1]) #xpath(//div[@xml:id='E98']/ab[1])"/>
<link target="#xpath(//div[@xml:id='L98']/ab[2]) #xpath(//div[@xml:id='E98']/ab[2])"/>
</linkGrp>
TEI: Synchronization¶16.5 Synchronization
In the previous section we discussed two particular kinds of alignment: alignment of parallel texts in different languages; and alignment of texts and portions of an image. In this section we address another specialized form of alignment: synchronization. The need to mark the relative positions of text components with respect to time arises most naturally and frequently in transcribed spoken texts, but it may arise in any text in which quoted speech occurs, or events are described within a time frame. The methods described here are also generalizable for other kinds of alignment (for example, alignment of text elements with respect to space).
TEI: Aligning Synchronous Events¶16.5.1 Aligning Synchronous Events
Provided that explicit elements are available to represent the parts or places to be synchronized, then the global linking attribute synch may be used to encode such synchronization, once it has been identified.
- att.global.linking definisce un insieme di attributi per ipertesto o altro legame abilitati per tutti gli elementi quando è selezionato il sottoinsieme di marcatori per i collegamenti
synch (sincrono) punta a elementi sincroni rispetto all'elemento corrente
This is another of the attributes made globally available by the mechanism described in the introduction to this chapter. Alternatively, the link and linkGrp elements may be used to make explicit the fact that the synchronous elements are aligned.
To illustrate the use of these mechanisms for marking synchrony, consider the following representation of a spoken text:
B: The first time in twenty five years, we've cooked Christmas (unclear) for a blooming great load of people. A: So you're [1] (unclear) [2] B: [1] It will be [2] nice in a way, but, [3] be strange. [4] A: [3] Yeah [4], yeah, cos it, it's [5] the [6] B: [5] not [6]
This representation uses numbers in brackets to mark the points at which speakers overlap each other. For example, the [1] in A's first speech is to be understood as coinciding with the [1] in B's second speech.64
<u xml:id="u2b" who="#b"> The first time in twenty five years,
we've cooked Christmas <unclear> for a blooming great
load of people.</unclear>
</u>
<u xml:id="u3a" who="#a">So you're
<anchor synch="#t1b" xml:id="t1a"/>
<unclear>
<anchor synch="#t2b" xml:id="t2a"/>
</unclear>
</u>
<u xml:id="u3b" who="#b">
<anchor xml:id="t1b"/>It will be <anchor xml:id="t2b"/>
nice in a way, but, <anchor xml:id="t3b"/>
be strange.<anchor xml:id="t4b"/>
</u>
<u xml:id="u4a" who="#a">
<anchor synch="#t3b" xml:id="t3a"/>Yeah
<anchor synch="#t4b" xml:id="t4a"/>, yeah, cos it, its
<anchor synch="#t5b" xml:id="t5a"/>the
<anchor synch="#t6b" xml:id="t6a"/>
</u>
<u xml:id="u4b" who="#b">
<anchor xml:id="t5b"/>not<anchor xml:id="t6b"/>
</u>
<!-- ... -->
</div>
<linkGrp xml:id="lg1"
domains="#BNC-d1 #BNC-d1" targFunc="speaker.a speaker.b"
type="synchronous_alignment">
<link xml:id="L1" target="#t1a #t1b"/>
<link xml:id="L2" target="#t2a #t2b"/>
<link xml:id="L3" target="#t3a #t3b"/>
<link xml:id="l4" target="#t4a #t4b"/>
<link xml:id="l5" target="#t5a #t5b"/>
<link xml:id="l6" target="#t6a #t6b"/>
</linkGrp>
</back>
<u xml:id="u02" who="#b">No!</u>
</u>
<u who="#b">
<seg xml:id="u-b1"> It will be </seg> nice in a way, but,
<seg synch="#u-a3"> be strange. </seg>
</u>
<u who="#a">
<seg xml:id="u-a3"> Yeah </seg>, yeah, cos it,
its <seg synch="#u-b2"> the </seg>
</u>
<u xml:id="u-b2" who="#b"> not </u>
TEI: Placing Synchronous Events in Time¶16.5.2 Placing Synchronous Events in Time
A synchronous alignment specifies which points in a spoken text occur at the same time, and the order in which they occur, but does not say at what time those points actually occur. If that information is available to the encoder it can be represented by means of the when and timeline elements, whose description and attributes are the following:
- when fornisce un'indicazione temporale in termini relativi, rispetto ad altri elementi determinati sulla stessa scala temporale, o in termini assoluti
absolute indica un valore temporale assoluto interval indica la componente numerica di un intervallo temporale unit specifica l'unità temporale nel quale è espresso l'attributo interval, se questo non è ereditato dal genitore timeline I valori suggeriti includono: 1] d(days) ; 2] h(hours) ; 3] min(minutes) ; 4] s(seconds) ; 5] ms(milliseconds) since identifica il punto di riferimento per la determinazione del valore temporale dell'elemento when corrente, ottenuto aggiungendo l'intervallo al punto di riferimento temporale - timeline (scala temporale) indica una serie di punti ordinati temporalmente i quali possono essere collegati agli elementi di un testo parlato al fine di ottenere un allineamento temporale del testo stesso
origin indica l'origine della scala temporale, cioè il momento in cui ha inizio interval indica la componente numerica di un intervallo temporale unit specifica l'unità temporale corrispondente al valore dell'attributo interval della scala temporale o dei suoi punti costitutivi I valori suggeriti includono: 1] d(days) ; 2] h(hours) ; 3] min(minutes) ; 4] s(seconds) ; 5] ms(milliseconds)
Each when element indicates a point in time, either directly by means of the absolute attribute, whose value is a string which specifies a particular time, or indirectly by means of the since attribute, which points to another when. If the since is used, then the interval and unit attributes should also be used to indicate the amount of time that has elapsed since the time specified by the element pointed to by the since attribute; the value -1 can be given to indicate that the interval is unknown.
If the when elements are uniformly spaced in time, then the interval and unit values need be given once in the timeline, and not repeated in any of the when elements. If the intervals vary, but the units are all the same, then the unit attribute alone can be given in the timeline element, and the interval attribute given in the when element.
The origin attribute in the timeline element points to a when element which specifies the reference or origin for the timings within the timeline; this must, of course, specify its position in time absolutely. If the origin of a timeline is unknown, then this attribute may be omitted.
unit="ms">
<when xml:id="w0" absolute="11:30:00"/>
<when xml:id="w1" interval="unknown"
since="#w0"/>
<when xml:id="w2" interval="100"
since="#w1"/>
<when xml:id="w3" interval="200"
since="#w2"/>
<when xml:id="w4" interval="150"
since="#w3"/>
<when xml:id="w5" interval="250"
since="#w4"/>
<when xml:id="w6" interval="100"
since="#w5"/>
</timeline>
domains="#lg1 #tL1" targFunc="synch.points when">
<link target="#L1 #w1"/>
<link target="#L2 #w2"/>
<link target="#L3 #w3"/>
<link target="#l4 #w4"/>
<link target="#l5 #w5"/>
<link target="#l6 #w6"/>
</linkGrp>
domains="#BNC-d1 #BNC-d1 #tL1" targFunc="speaker.a speaker.b when">
<link target="#t1a #t1b #w1"/>
<link target="#t2a #t2b #w2"/>
<link target="#t3a #t3b #w3"/>
<link target="#t4a #t4b #w4"/>
<link target="#t5a #t5b #w5"/>
<link target="#t6a #t6b #w6"/>
</linkGrp>
xml:id="au1" begin="05.2s"/>
<audio xmlns="http://www.w3.org/2001/SMIL20/Language" src="rtsp://soundstage.pi.cnr.it:554/home/az/bncSound/xmas4lots.mp3"
xml:id="au2" begin="05.7s"/>
<audio xmlns="http://www.w3.org/2001/SMIL20/Language" src="rtsp://soundstage.pi.cnr.it:554/home/az/bncSound/xmas4lots.mp3"
xml:id="au3" begin="05.9s"/>
<audio xmlns="http://www.w3.org/2001/SMIL20/Language" src="rtsp://soundstage.pi.cnr.it:554/home/az/bncSound/xmas4lots.mp3"
xml:id="au4" begin="06.3s"/>
<audio xmlns="http://www.w3.org/2001/SMIL20/Language" src="rtsp://soundstage.pi.cnr.it:554/home/az/bncSound/xmas4lots.mp3"
xml:id="au5" begin="06.9s"/>
<audio xmlns="http://www.w3.org/2001/SMIL20/Language" src="rtsp://soundstage.pi.cnr.it:554/home/az/bncSound/xmas4lots.mp3"
xml:id="au6" begin="07.4s"/>
For further discussion of this and related aspects of encoding transcribed speech, refer to chapter 8 Transcriptions of Speech.
TEI: Identical Elements and Virtual Copies¶16.6 Identical Elements and Virtual Copies
This section introduces the notion of a virtual element, that is, an element which is not explicitly present in a text, but the presence of which an application can infer from the encoding supplied. In this section, we are concerned with virtual elements made by simply cloning existing elements. In the next section (16.7 Aggregation), we discuss virtual elements made by aggregating existing elements.
Provided that explicit elements are available to represent the parts or places to be linked, then the global linking attributes sameAs and copyOf may be used to encode this kind of equivalence:
- att.global.linking definisce un insieme di attributi per ipertesto o altro legame abilitati per tutti gli elementi quando è selezionato il sottoinsieme di marcatori per i collegamenti
sameAs punta a un elemento che corrisponde esattamente all'elemento corrente copyOf punta a un elemento di cui l'elemento corrente è una copia
<q rend="centered italic">
<date xml:id="d840404">April 4th,
1984</date>.</q>
</p>
<p>He sat back. A sense of complete helplessness had
descended upon him. ...</p>
<p>His small but childish handwriting straggled up
and down the page, shedding first its capital letters
and finally even its full stops:
<q rend="italic">
<date>April 4th, 1984</date>.
Last night to the flicks. ... </q>
</p>
1984</date>
Last night to the flicks ...
The sameAs attribute may be used to document the fact that two elements have identical content. It may be regarded as a special kind of link. It should only be attached to an element with identical content to that which it targets, or to one the content of which clearly designates it as a repetition, such as the word repeat or bis in the representation of the chorus of a song, the second time it is to be sung. The relation specified by the sameAs attribute is symmetric: if a chorus is repeated three times and each repetition bears a sameAs attribute indicating the first occurrence of the element concerned, it is implied that each chorus is identical, and there is no need for the first occurrence to specify any of its copies.
An application program should replace whatever is the actual content of an element bearing a copyOf attribute with the content of the element specified by it. If the content of the element specified includes other elements, these will become embedded within the element bearing the attribute. Care must be taken to ensure that the document is valid both before and after this embedding takes place. If, for example, the element bearing a copyOf attribute requires a mandatory sub-component, then this component must be present (though possibly empty), even though it will be replaced by the content of the targetted element.
<speaker>Mikado</speaker>
<l>My <seg xml:id="Mik-L1s">object all sublime</seg>
</l>
<l>I shall <seg xml:id="Mik-L2s">achieve in time</seg>—</l>
<l xml:id="Mik-L3">To let <seg xml:id="L3s">the punishment fit the crime</seg>,</l>
<l xml:id="Mik-l4">
<seg copyOf="#Mik-L3s"/>;</l>
<l xml:id="Mik-l5">And make each pris'ner pent</l>
<l xml:id="Mik-l6">Unwillingly represent</l>
<l xml:id="Mik-l7">A source <seg xml:id="Mik-l7s">of innocent merriment</seg>,</l>
<l xml:id="Mik-l8">
<seg copyOf="#Mik-l7s"/>!</l>
</sp>
<sp>
<speaker>Chorus</speaker>
<l>His <seg copyOf="#Mik-L1s"/>
</l>
<l>He will <seg copyOf="#Mik-L2s"/>
</l>
<l copyOf="#Mik-L3"/>
<l copyOf="#Mik-l4"/>
<l copyOf="#Mik-l5"/>
<l copyOf="#Mik-l6"/>
<l copyOf="#Mik-l7"/>
<l copyOf="#Mik-l8"/>
</sp>
For further examples of the use of this attribute, see 16.8 Alternation and 19.3 Another Tree Notation.
TEI: Aggregation¶16.7 Aggregation
Because of the strict hierarchical organization of elements, or for other reasons, it may not always be possible or desirable to include all the parts of a possibly fragmented text segment within a single element. In section 16.1.4 Intermediate Pointers we introduced the notion of an intermediate pointer as a way of pointing to discontinuous segments of this kind. In this section we first describe another way of linking the parts of a discontinuous whole, using a set of linking attributes, which are made available for any tag by following the procedure described at the beginning of this chapter. We then describe how the link element may be used to aggregate such segments, and finally introduce the join element, which is a special-purpose linking element specifically for representing the aggregation of parts, and the joinGrp for grouping join elements.
The linking attributes for aggregation are next and prev; each of these attributes has a single identifier as its value:
- att.global.linking definisce un insieme di attributi per ipertesto o altro legame abilitati per tutti gli elementi quando è selezionato il sottoinsieme di marcatori per i collegamenti
next punta all'elemento seguente all'interno di un aggregazione virtuale di cui l'elemento corrente fa parte prev (precedente) punta all'elemento precedente all'interno di un aggregazione virtuale di cui l'elemento corrente fa parte
The join element is also a member of the class of att.pointing elements, and so may carry any of the attributes of that class; for the list, see section 16.1 Links.
<s xml:id="qs2">Monsieur Paul, after he has taken equal
parts of goose breast and the finest pork, and
broken a certain number of egg yolks into them,
and ground them <emph>very</emph>, very fine,
cooks all with seasoning for some three hours.</s>
<s xml:id="qs3">
<emph>But</emph>,</s>
</q>
<s xml:id="ps2">she pushed her face nearer, and looked with
ferocious gloating at the pâté
inside me, her eyes like X rays,</s>
<q>
<s xml:id="qs4">he never stops stirring it!</s>
<s xml:id="qs5">Figure to yourself the work of it —</s>
<s xml:id="qs6">stir, stir, never stopping!</s>
</q>
<s xml:id="qs3" next="#qs4"><emph>But</emph>,</s> <s xml:id="qs4">he never stops stirring it!</s>
<s xml:id="qs3"><emph>But</emph>,</s> <s xml:id="qs4" prev="#qs3">he never stops stirring it!</s>
<s xml:id="qs3" next="#qs4"><emph>But</emph>,</s> <s xml:id="qs4" prev="#qs3">he never stops stirring it!</s>Double linking of the two s-units, as illustrated by the last of these encodings, is equivalent to specifying a link element:
Such a link element must carry a type attribute with a value of join to specify that the link is to be understood as joining its targets into a single aggregate.
- join identifica un segmento o frammento di testo puntando ad eventuali elementi non contigui che lo compongono
result indica il nome dell'elemento rappresentato dall'insieme di identificatori in questione - joinGrp (gruppo di collegamento) raggruppa un insieme di elementi di collegamento ed eventuali puntatori
result descrive il risultato dei collegamenti raggruppati in tale insieme
<head>Authors</head>
<item xml:id="a_uf">Figge, Udo </item>
<item xml:id="a_ch">Heibach, Christiane </item>
<item xml:id="a_gh">Heyer, Gerhard </item>
<item xml:id="a_bp">Philipp, Bettina </item>
<item xml:id="a_ms">Samiec, Monika </item>
<item xml:id="a_ss">Schierholz, Stefan </item>
</list>
<join target="#a_ch #a_bp #a_ss"
result="list">
<desc>Authors from Heidelberg</desc>
</join>
The following example shows how join can be used to reconstruct a text cited in fragments presented out of order. The poem being remembered (an unusual translation of a well-known poem by Basho) runs ‘When the old pond / gets a new frog, / it's a new pond.’
<speaker>Hughie</speaker>
<p>How does it go?
<q>
<l xml:id="frog-x1">da-da-da</l>
<l xml:id="frog-L2">gets a new frog</l>
<l>...</l>
</q>
</p>
</sp>
<sp>
<speaker>Louie</speaker>
<p>
<q>
<l xml:id="frog-L1">When the old pond</l>
<l>...</l>
</q>
</p>
</sp>
<sp>
<speaker>Dewey</speaker>
<p>
<q>...
<l xml:id="frog-L3">It's a new pond.</l>
</q>
</p>
<join target="#frog-L1 #frog-L2 #frog-L3"
result="lg" scope="root"/>
</sp>
result="s">
<join target="#qs3 #qs4"/>
<join target="#qs5 #qs6"/>
</joinGrp>
The join element is useful as a means of representing non-hierarchic structures (as further discussed in chapter 20 Non-hierarchical Structures). It may also be used as a convenient way of representing a variety of analytic units, like the span and interp elements discussed in chapter 17 Simple Analytic Mechanisms. As an example, consider the following famous Zen koan:
Zui-Gan called out to himself every day, ‘Master.’
Then he answered himself, ‘Yes, sir.’
And then he added, ‘Become sober.’
Again he answered, ‘Yes, sir.’
‘And after that,’ he continued, ‘do not be deceived by others.’
‘Yes, sir; yes, sir,’ he replied.
<body>
<p>
<name xml:id="zuigan">Zui-Gan</name> called out to himself every day,
<q next="#zuiq2" xml:id="zuiq1"
who="#zuigan">
<name xml:id="master">Master</name>.</q>
</p>
<p>Then he answered himself,
<q next="#zuiq4" xml:id="zuiq2"
who="#zuigan">Yes, sir.</q>
</p>
<p>And then he added,
<q next="#zuiq5" xml:id="zuiq3"
who="#master">Become sober.</q>
</p>
<p>Again he answered,
<q next="#zuiq7" xml:id="zuiq4"
who="#zuigan">Yes, sir.</q>
</p>
<p>
<q next="#zuiq6" xml:id="zuiq5"
who="#master">And after that,</q>
he continued,
<q xml:id="zuiq6" who="#master">do not be deceived by others.</q>
</p>
<p>
<q xml:id="zuiq7" who="#zuigan">Yes, sir; yes, sir,</q>
he replied.</p>
</body>
</text>
<join target="#zuiq1 #zuiq2 #zuiq4 #zuiq7">
<desc>what Zui-Gan said</desc>
</join>
<join target="#zuiq3 #zuiq5 #zuiq6">
<desc>what Master said</desc>
</join>
</joinGrp>
Note the use of the desc child element within the two joins making up the q element here. These enable us to document the speakers of the two virtual q elements represented by the join elements; this is necessary because the there is no way of specifying the attributes to be associated with a virtual element, in particular there is no way to specify a who value for them.
<body>
<!-- five div1 elements -->
<div1>
<p>Zui-Gan called out to himself every day, <q>Master.</q>
</p>
<p>Then he answered himself, <q>Yes, sir.</q>
</p>
<p>And then he added, <q>Become sober.</q>
</p>
<p>Again he answered, <q>Yes, sir.</q>
</p>
<p>
<q>And after that,</q> he continued, <q>do not be deceived by others.</q>
</p>
<p>
<q>Yes, sir; yes, sir,</q> he replied.</p>
<ab type="aggregation">
<ptr xml:id="rzuiq1"
target="./#xpath(//div1[6]/p[1]/q[1])"/>
<ptr xml:id="rzuiq2"
target="./#xpath(//div1[6]/p[2]/q[1])"/>
<ptr xml:id="rzuiq3"
target="./#xpath(//div1[6]/p[3]/q[1])"/>
<ptr xml:id="rzuiq4"
target="./#xpath(//div1[6]/p[4]/q[1])"/>
<ptr xml:id="rzuiq5"
target="./#xpath(//div1[6]/p[5]/q[1])"/>
<ptr xml:id="rzuiq6"
target="./#xpath(//div1[6]/p[5]/q[2])"/>
<ptr xml:id="rzuiq7"
target="./#xpath(//div1[6]/p[6]/q[1])"/>
<joinGrp evaluate="one" result="q">
<join target="#rzuiq1 #rzuiq2 #rzuiq4 #rzuiq7">
<desc>what Zui-Gan said</desc>
</join>
<join target="#rzuiq3 #rzuiq5 #rzuiq6">
<desc>what Master said</desc>
</join>
</joinGrp>
</ab>
</div1>
</body>
</text>
The extended pointer with identifier rzuiq2, for example, may be read as ‘the first q in the first p, within the sixth div1 element of the current document.’
TEI: Alternation¶16.8 Alternation
This section proposes elements for the representation of alternation. We say that two or more elements are in exclusive alternation if any of those elements could be present in a text, but one and only one of them is; in addition, we say that those elements are mutually exclusive. We say that the elements are in inclusive alternation if at least one (and possibly more) of them is present. The elements that are in alternation may also be called alternants.
The need to mark exclusive alternation arises frequently in text encoding. A common situation is one in which it can be determined that exactly one of several different words appears in a given location, but it cannot be determined which one. One way to mark such an exclusive alternation is to use the linking attribute exclude. Having marked an exclusive alternation, it can sometimes later be determined which of the alternants actually appears in the given location. To preserve the fact that an alternation was posited, one can add the linking attribute select to a tag which hierarchically encompasses the alternants, which points to the one which actually appears. To assign responsibility and degree of certainty to the choice, one can use the certainty tag described in chapter 21 Certainty, Precision, and Responsibility. Also see that chapter for further discussion of certainty in general.
The exclude and select attributes may be used with any element assuming that they have been declared following the procedure discussed in the introduction to this chapter.
- att.global.linking definisce un insieme di attributi per ipertesto o altro legame abilitati per tutti gli elementi quando è selezionato il sottoinsieme di marcatori per i collegamenti
exclude punta a elementi in relazione di alternanza esclusiva con l'elemento corrente select seleziona una o più alternative; se viene selezionata una delle alternative, l'ambiguità o incertezza è indicata come risolta; se viene selezionata più di un'alternativa, il grado di ambiguità o incertezza è indicato come ridotto dal numero delle alternative non selezionate
A more general way to mark alternation, encompassing both exclusive and inclusive alternation, is to use the linking element alt. The description and attributes of this tag and of the associated grouping tag altGrp are as follows. These elements are also members of the att.pointing class and therefore have all the attributes associated with that class.
- alt (alternanza) identifica un'alternanza o una serie di scelte tra gli elementi o le porzioni di testo
weights se l'attributo mode è excl
, ogni peso rappresenta la probabilità che compaia l'alternativa corrispondente; se l'attributo mode è incl ogni peso rappresenta la probabilità che compaia l'alternativa corrispondente a patto che compaia almeno un'altra delle possibili alternative - altGrp (gruppo di alternanza) raggruppa un insieme di elementi alt ed eventuali puntatori
<u exclude="#we.sun1" xml:id="we.fun1">We had fun at the beach today.</u>
<u exclude="#we.fun1" xml:id="we.sun1">We had sun at the beach today.</u>
</div>
<u exclude="#we.sun2" xml:id="we.fun2">We had fun at the beach
today.</u>
<u exclude="#we.fun2" xml:id="we.sun2">We had sun at the beach today.</u>
</div>
<u select="#fun3">We had
<seg exclude="#sun3" xml:id="fun3"
type="word">fun</seg>
<seg exclude="#fun3" xml:id="sun3"
type="word">sun</seg>
at the beach today.</u>
</div>
<u>We had
<seg select="#id-f" type="word">
<seg exclude="#id-s" xml:id="id-f"
type="character">f</seg>
<seg exclude="#id-f" xml:id="id-s"
type="character">s</seg>
un</seg>
at the beach today.</u>
</div>
<!-- ... -->
<u exclude="#we.sun4 #lee.fun4"
xml:id="we.fun4">We had fun at the beach today.</u>
<u exclude="#we.fun4 #lee.fun4"
xml:id="we.sun4">We had sun at the beach today.</u>
<u exclude="#we.fun4 #we.sun4"
xml:id="lee.fun4">Lee had fun at the beach today.</u>
<!-- ... -->
</div>
<seg exclude="#lee" xml:id="we" type="word">We</seg>
<seg exclude="#we #sun" xml:id="lee"
type="word">Lee</seg>
had
<seg exclude="#sun" xml:id="fun"
type="word">fun</seg>
<seg exclude="#fun #lee" xml:id="sun"
type="word">sun</seg>
at the beach today.
</u>
type="interview">
<u exclude="#we.sun5 #lee.fun5"
xml:id="we.fun5">We had fun at the beach today.</u>
<u exclude="#we.fun5 #lee.fun5"
xml:id="we.sun5">We had sun at the beach today.</u>
<u exclude="#we.fun5 #we.sun5"
xml:id="lee.fun5">Lee had fun at the beach today.</u>
</div>
<u exclude="#lee.fun6" xml:id="we.fun6">We had fun at the beach
today.</u>
<u exclude="#we.fun6" xml:id="lee.fun6">Lee had fun at the beach today.</u>
</div>
<name exclude="#mayn" xml:id="mayd">May</name>
<date copyOf="#mayd" exclude="#mayd"
xml:id="mayn"/>.</s>
Note the use of the copyOf attribute discussed in section 16.6 Identical Elements and Virtual Copies; this avoids having to repeat the content of the element whose correct tagging is in doubt.
<div1 xml:id="C1">
<div2 xml:id="C1S3" exclude="#C2S1"/>
</div1>
<div1 xml:id="C2">
<div2 xml:id="C2S1" copyOf="#C1S3"
exclude="#C1S3"/>
</div1>
</body>
<u xml:id="we.had.fun">We had fun at the beach today.</u>
<u xml:id="we.had.sun">We had sun at the beach today.</u>
<link type="exclusiveAlternation"
target="#we.had.fun #we.had.sun"/>
</div>
type="exclusive_alternation"/>
mode="excl"/>
Another attribute that is defined specifically for the alt element is weights, which is to be used if one wishes to assign probabilistic weights to the targets (alternants). Its value is a list of numbers, corresponding to the targets, expressing the probability that each target appears. If the alternants are mutually exclusive, then the weights must sum to 1.0.
mode="excl" weights="0.5 0.5"/>
<u xml:id="we.sun">We had sun at the beach today.</u>
<alt target="#we.fun #we.sun" mode="excl"
weights="1 0"/>
k
)%, where k
is the number of targets. If the sum is 0%, then the alternation is equivalent to exclusive alternation; if the sum is (100 x k)%, then all of the alternants must appear, and the situation is better encoded without an alt tag.If it is desired, alt elements may be grouped together in an altGrp element, and attribute values shared by the individual alt elements may be identified on the altGrp element. The targFunc attribute defaults to the value first.alternant next.alternant.
<seg exclude="#lee2" xml:id="we2"
type="word">We</seg>
<seg exclude="#we2" xml:id="lee2"
type="word">Lee</seg>
had
<seg exclude="#sun2" xml:id="fun2"
type="word">fun</seg>
<seg exclude="#fun2" xml:id="sun2"
type="word">sun</seg>
at the beach today.
</u>
<altGrp>
<alt target="#we2 #lee2"/>
<alt target="#fun2 #sun2"/>
<alt target="#we2 #fun2" mode="incl"
weights="0.5 0.5"/>
<alt target="#lee2 #fun2" mode="incl"
weights="1.0 0.6"/>
</altGrp>
From the information in this encoding, we can determine that the probability is about 28.5% that the utterance is ‘We had fun at the beach today’, 28.5% that it is We had sun at the beach today, and 43% that it is Lee had fun at the beach today.
Another very similar example is the following regarding the text of a Broadway song. In three different versions of the song, the same line reads ‘Her skin is tender as a leather glove’, ‘Her skin is tender as a baseball glove’, and ‘Her skin is tender as Dimaggio's glove.’68
If we wish to express this textual variation using the alt element, we can record our relative confidence in the readings Dimaggio's (with probability 50%), a leather (25%), and a baseball (25%).
<l>Her skin is tender as
<seg xml:id="dm">Dimaggio's</seg>
<seg xml:id="lt">a leather</seg>
<seg xml:id="bb">a baseball</seg>
glove,</l>
<l xml:id="rl">and she bats from right to left.</l>
<l xml:id="db">now ain't that too damn bad.</l>
</div>
<altGrp>
<alt target="#dm #lt #bb" mode="excl"
weights="0.5 0.25 0.25"/>
<alt target="#rl #db" mode="excl"
weights="0.50 0.50"/>
</altGrp>
<altGrp mode="incl">
<alt target="#dm #rl" weights="0.90 0.90"/>
<alt target="#lt #rl" weights="0.5 0.5"/>
<alt target="#bb #rl" weights="0.5 0.5"/>
<alt target="#dm #db" weights="0.10 0.10"/>
<alt target="#lt #db" weights="0.45 0.90"/>
<alt target="#bb #db" weights="0.45 0.90"/>
</altGrp>
TEI: Stand-off Markup¶16.9 Stand-off Markup
TEI: Introduction¶16.9.1 Introduction
Most of the mechanisms defined in this chapter rely to a greater or lesser extent on the fact that tags in a marked-up document can both assert a property for a span of text which they enclose, and assert the existence of an association between themselves and some other span of text elsewhere. In stand-off markup, there is a clear separation of these two behaviours: the markup does not directly contain any part of the text, but instead includes it by reference. One specific mechanism recommended by these Guidelines for this purpose is the standard XInclude mechanism defined by the W3C; another is to use pointers as demonstrated elsewhere in this chapter.
There are many reasons for using stand-off markup: the source text might be read-only so that additional markup cannot be added, or a single text may need to be marked up according to several hierarchically incompatible schemes, or a single scheme may need to accommodate multiple hierarchical ambiguities, so that a single markup tree is not the most faithful representation of the source material.
This section describes a generic mechanism for expressing all kinds of markup externally as stand-off tags, for use whenever it is appropriate.
Throughout this section the following terms will be systematically used in specific senses.
- source document
- a document to which the stand-off markup refers (a source document can be either XML or plain text); there may be more than one source document.
- internal markup
- markup that is already present in an XML source document
- stand-off markup
- markup that is either outside of the source document and points in to it to the data it describes, or alternatively is in another part of the source document and points elsewhere within the document to the data it describes
- external document
- a document that contains stand-off markup that points to a different, source document
- internalize
- the action of creating a new XML document with external markup and data integrated with the source document data, and possibly some source document markup as well
- externalize
- a process applied to markup from a pre-existing XML document, which splits it into two documents, an XML (external) document containing some of the markup of the original document, and another (source) XML document containing whatever text content and markup has not been extracted into the stand-off document; if all markup has been externalized from a document, the new source may be a plain text document
The three major requirements satisfied by this scheme for stand-off markup are:
- any valid TEI markup can be either internal or external,
- external markup can be internalized by applying it to the document content by either substituting the existing markup or adding to it, to form a valid TEI document, and
- the external markup itself specifies whether an internalized document is to be created by substituting the existing internal markup or by adding to it
.
TEI: Overview of XInclude ¶16.9.2 Overview of XInclude
Stand-off markup which relies on the inclusion of virtual content is adequately supported by the W3C XInclude recommendation, which is also recommended for use by these Guidelines.69 XInclude defines a namespace (http://www.w3.org/2001/XInclude), which in these Guidelines will be associated with the prefix xi:, and exactly two elements, <xi:include> and <xi:fallback>. XInclude relies on the XPointer framework discussed elsewhere in this chapter to point to the actual fragments of text to be internalized. Although XInclude only requires support for the element()
scheme of XPointer, these Guidelines permit the use of any of the pointing schemes discussed in section 16.2 Pointing Mechanisms.
XInclude is a W3C recommendation which specifies a syntax for the inclusion within an XML document of data fragments placed in different resources. Included resources can be either plain text or XML. XInclude instructions within an XML document are meant to be replaced by a resource targetted by a URI, possibly augmented by an XPointer that identifies the exact subresource to be included.
The <xi:include> element uses the href attribute to specify the location of the resource to be included; its value is an URI containing, if necessary, an XPointer. Additionally, it uses the parse attribute (whose only valid values are text and xml) to specify whether the included content is plain text or an XML fragment, and the encoding attribute to provide a hint, when the included fragment is text, of the character encoding of the fragment. An optional <xi:fallback> element is also permitted within an <xi:include>; it specifies alternative content to be used when the external resource cannot be fetched for some reason. Its use is not however recommended for stand-off markup.
TEI: Stand-off Markup in TEI¶16.9.3 Stand-off Markup in TEI
The operations of internalizing and externalizing markup are very useful and practically important. XInclude processing as defined by the W3C is internalization of one or more source documents' content into a stand-off document. TEI use of XInclude for stand-off markup enables use of XInclude-conformant software to perform this useful operation. However, internalization is not clearly defined for all stand-off files, because the structure of the internal and external markup trees may overlap. In particular, when an external markup document selects a range that overlaps partial elements in the source document, it is not clear how the semantics of internalization (inclusion) should work, since partial elements are not XML objects.70 XInclude defines a semantics for this case that involves only complete elements.
<p xml:id="par1">home, <emph>home</emph> on Brokeback Mountain.</p>
<p xml:id="par2">That was the <emph>song</emph> that I sang</p>
</body>
<body> <div><include href="example1.xml" xmlns="http://www.w3.org/2001/XInclude" xpointer="range(xpath(id('par1')//emph),xpath(id('par2')//emph))"/> </div> </body>the resulting document after XInclude processing of this external document would be:
<body> <div> <p xml:id="par1">home, <emph>home</emph> on Brokeback Mountain.</p> <p xml:id="par2">That was the <emph>song</emph> that I sang</p> </div> </body>The result of the inclusion is two paragraph elements, while the original range designated in the source document overlapped two paragraph fragments. The semantics of XInclude require the creation of well-formed XML results even though the pointing mechanisms it uses do not necessarily respect the hierarchical structure of XML documents, as in this case. While this is a good way to ensure that internalization is always possible, it has implications for the use of XInclude as a notation for the description of overlapping markup structures.
When overlapping hierarchies need to be represented for a single document, each hierarchy must be represented by a separate set of XInclude tags pointing to a common source document. This sort of structure corresponds to common practice in work with linguistic text corpora. In such corpora, each potentially overlapping hierarchy of elements for the text is represented as a separate stream of stand-off markup. Generally the source text contains markup for the smallest significant units of analysis in the corpus, such as words or morphemes, this information and its markup representing a layer of common information that is shared by all the various hierarchies. As a way of organizing the representation of complex data, this technique generally allows a large number of xml:id attributes to be attached to the shared elements, providing robust anchors for links and facilitating adjustments to the source document without breaking external documents that reference it.
Any tag can be externalized by removing its content and replacing it with an <xi:include> element that contains an XPointer pointing to the desired content.
<body>
<head>1755</head>
<l>To make a prairie it takes a clover and one bee,</l>
<l>One clover, and a bee,</l>
<l>And revery.</l>
<l>The revery alone will do,</l>
<l>If bees are few.</l>
</body>
</text>
Source.xml
<content>To make a prairie it takes a clover and one bee,\n One clover, and a bee,\n And revery.\n The revery alone will do,\n If bees are few.\n </content>
External.xml
<text xmlns:xi="http://www.w3.org/2001/XInclude"> <body> <head>1755</head> <l> <xi:include href="Source.xml" parse="xml" xpointer="string-range(element(/1), 0, 48)"/> </l> <l> <xi:include href="Source.xml" parse="xml" xpointer="string-range(element(/1), 49, 71)"/> </l> <l> <xi:include href="Source.xml" parse="xml" xpointer="string-range(element(/1), 72, 83)"/> </l> <l> <xi:include href="Source.xml" parse="xml" xpointer="string-range(element(/1), 84,109)"/> </l> <l> <xi:include href="Source.xml" parse="xml" xpointer="string-range(element(/1),110,126)"/> </l> </body> </text>
Please note that this specification requires that the XInclude namespace declaration is present in all cases. The <xi:fallback> element contains text or XML fragments to be placed in the document if the inclusion fails for any reason (for instance due to inaccessibility of an external resource). The <xi:fallback> element is optional; if it is not present an XInclude processor must signal a fatal error when a resource is not found. This is the preferred behaviour for use with stand-off markup. These Guidelines recommend against the use of <xi:fallback> for stand-off markup.
TEI: Well-formedness and Validity of Stand-off Markup¶16.9.4 Well-formedness and Validity of Stand-off Markup
The whole source fragment identified by an XInclude element, as well as any markup therein contained is inserted in the position specified, and an XInclude processor is required to ensure that the resulting internalized document is well-formed. This has obvious implications when the external document contains XML markup. A plain text source document will always create a well-formed internalized document.
While a TEI customization may permit <xi:include> elements in various places in a TEI document instance, in general these Guidelines suggest that validity be verified after the resolution of all the <xi:include> elements.
TEI: Including Text or XML Fragments¶16.9.5 Including Text or XML Fragments
When the source text is plain text the overall form of the XPointer pointing to it is of minimal importance. The form of the XPointer matters considerably, on the other hand, when the source document is XML.
In this case, it is rather important to distinguish whether we intend to substitute the source XML with the new one, or just to add new markup to it. The XPointers used in the references can express both cases.
Source.xhtml
<xhtml:body>
<xhtml:div>To make a prairie it takes a <xhtml:a href="clover.gif">clover</xhtml:a>
and one <xhtml:a href="bee.gif">bee</xhtml:a>,</xhtml:div>
<xhtml:div>One <xhtml:a href="clover.gif">clover</xhtml:a>, and
a <xhtml:a href="bee.gif">bee</xhtml:a>,</xhtml:div>
<xhtml:div>And revery.</xhtml:div>
<xhtml:div>The revery alone will do,</xhtml:div>
<xhtml:div>If bees are few.</xhtml:div>
</xhtml:body>
</xhtml:html>
range(element(/1/2/1.0),element(/1/2/11.1))
will select the whole poem, text content and div elements and hypertext links (NB: in XPointer whitespace-only text nodes count).On the contrary, the expressions xpointer(//text()/range-to(.))
and xpointer(string-range(//text(),"To")/range-to(//text(),"few.")
will only select the text of the poem, with no markup inside.
Thus, the following could be a valid stand-off document for the Source.xhtml document:
External2.xml
<text xmlns:xi="http://www.w3.org/2001/XInclude"> <body> <head>1755</head> <l> <xi:include href="Source.xhtml" xpointer='xpointer(string-range(//div[1]/text(),"To")/range-to(//div[1]/text(),"bee,")'/> </l> <l> <xi:include href="Source.xhtml" xpointer='xpointer(string-range(//div[2]/text(),"One")/range-to(//div[2]/text(),"bee,")'/> </l> <l> <xi:include href="Source.xhtml" xpointer='xpointer(string-range(//div[3]/text(),"And")/range-to(//div[3]/text(),".")'/> </l> <l> <xi:include href="Source.xhtml" xpointer='xpointer(string-range(//div[4]/text(),"The")/range-to(//div[4]/text(),",")'/> </l> <l> <xi:include href="Source.xhtml" xpointer='xpointer(string-range(//div[5]/text(),"If")/range-to(//div[5]/text(),".")'/> </l> </body> </text>
TEI: Connecting Analytic and Textual Markup¶16.10 Connecting Analytic and Textual Markup
In chapters 17 Simple Analytic Mechanisms and 18 Feature Structures and elsewhere, provision is made for analytic and interpretive markup to be represented outside of textual markup, either in the same document or in a different document. The elements in these separate domains can be connected, either with the pointing attributes ana (for analysis) and inst (for instance), or by means of link and linkGrp elements. Numerous examples are given in these chapters.
TEI: Module for Linking, Segmentation, and Alignment¶16.11 Module for Linking, Segmentation, and Alignment
The module described in this chapter makes available the following components:
- Modulo linking: Collegamento, segmentazione e allineamento
The selection and combination of modules to form a TEI schema is described in 1.2 Defining a TEI Schema.
tei
matches any string that contains tei, in the W3C language it only matches the string ‘tei’.
